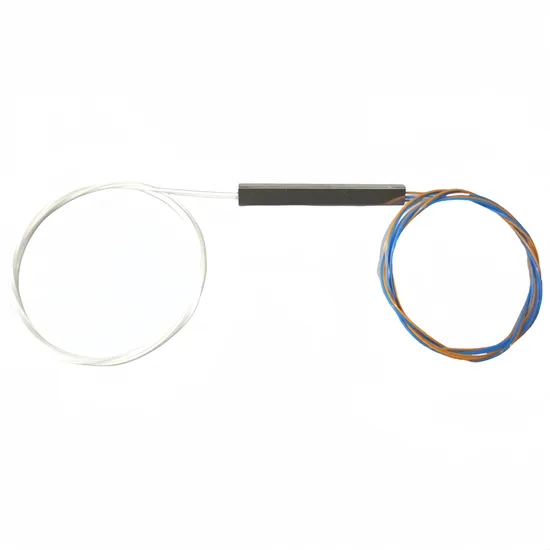

High-Quality 1X2 Fiber PLC Splitter for Optical Networks Without Connector

Product Description

Product Description Introduction of Fiber Optic PLC SplitterPlanar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. Blockless PLC splitter has stronger fiber protection than bare fiber splitter, which is a miniaturization result of cassette splitter. It's mainly used for various connection and distribution boxes or network cabinets. Product Parameters Features: Experience ultra-low insertion loss and minimal PDL with our compact design. Enjoy superior channel-to-channel uniformity and operate across a wide wavelength spectrum, from 1260nm to 1650nm. Our splitters operate reliably in extreme temperatures, from -40 to 85, ensuring high stability and durability. Applications: These splitters are perfect for low-insertion-loss requirements, including Fiber to the Home (FTTH), Passive Optical Networks (PON), Local Area Networks (LAN), and other fiber communication systems.

Parameters	1×2	1×4	1×8	1×16	1×32	1×64
Operating Wavelength (nm)	1260~1650
Fiber Type	SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)	4.0/3.8	7.3/7.0	10.5/10.2	13.7/13.5	16.9/16.5	21.0/20.5
Loss Uniformity (dB)	0.4	0.6	0.8	1.2	1.5	2.5
Return Loss (dB) (S/P Grade)	50/55	50/55	50/55	50/55	50/55	50/55
Polarization Dependent Loss(dB)	0.2	0.2	0.3	0.3	0.3	0.4
Directivity (dB)	55	55	55	55	55	55
Wavelength Dependent Loss(dB)	0.3	0.3	0.3	0.5	0.5	0.5
Temperature Stability(-40~85 °C)(dB)	0.5	0.5	0.5	0.5	0.5	0.5
Operating Temperature (°C)	-40~85
Storage Temperature (°C)	-40~85
Packaging Dimension (mm) (L×W×H)	40×4×4	40×4×4	40×4×4	40×4×4	50×7×4	60×12×4
Notes:1.Specified without connectors. 2.Add an additional 0.2dB loss per connector

Company ProfileLike many companies that thrive over a number of years, we have carved out several areas of specialization and expertise for which we are known as the industry leader. Many catalog items can be purchased from other suppliers, but a number of important factors make us the preferred choice for many of the world's fiber professionals. These include, but are not limited to: Industry-leading customer service aimed at making the business part of high tech as friendly and painless as possible in part by stocking all the items you need. Not only do we partner with our customers, we partner with our suppliers.Doing business with us should never cost you more. In purchasing through GUI you pay less, but gain invaluable on-site and remote technical and customer support. You gain another partner.Our tenacious emphasis of offering only the highest quality products that have superior value, as opposed to selling lesser quality, cheaper alternatives and knock-offs, which, more likely than not, result in a greater need for reworks, missed delivery schedules, repair/upkeep costs, etc. Emphasis on specialty applications, such as medical, spectroscopy, laser delivery, industrial, sensing, oil and gas, broadcasting and research, as well as telecom, Datacom, CATV, FTTA and FTTH. FAQ1.Are you the real manufacturer?Yes. We are the real manufacturer in Fujian Porvince, China.
2.What is your fiber brand ?
We have our own fiber production lines and the preforms are from YOFC, FIBERHOME.
3.Can you accept small order?
Yes, small order is available. We support new project of customers as we know business is always from small order.
4.What is your warranty period?
More than 10 years for fiber optic cable.
5.What is your delivery time?
Usually within 7-10 working days.
6.What about your annual production capacity?
Outdoor Fiber Optic Cable : annual output 53,200 KM
PLC Splitter: annual output 7,560,000 piece
Patch Cord: annual output 15,430,000 piece
7.What is your payment way?
T/T,Online to offline.
8.Can you supply customized products and logo?
Yes. We supply OEM & ODM service.
