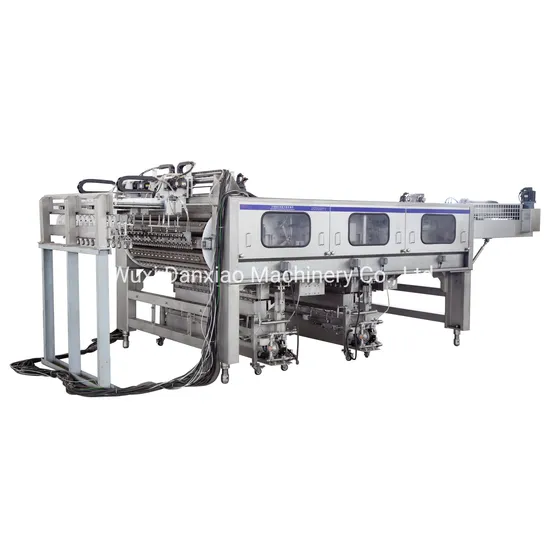

Magnum Ice Cream Pick up System Match with Extrusion Line
| US$80,000.00-150,000.00 | 1 Set (MOQ) |
Basic Info.
Certification
CE, ISO9001
Power Source
Electric
Automatic Grade
Automatic
Application
Ice Cream
Customized
Customized
Capacity
18000 Pieces/Hour
Transport Package
Other
Specification
CE, ISO9001
Trademark
Runyu
Origin
Jiangsu
HS Code
843800000
Production Capacity
20 Sets/Year
Product Description
Product DescriptionFunction :
1) Stick Ice Cream Pick-Up Hand is a new generation of pick up unit which adopts fully automatic PLC touch screen, human-machine interface operation.
2) It's suitable for equipped with SDA-980,DTB-880 and DTB-998 series large capacity ice cream extrusion production line.
3) Servo motor controlling makes the machine to be auto-sync with the frozen tunnel and pick up ice cream products from tunnel.
4)Through overturn of the plates, ice cream will be surface chocolate & jam coated and outlet to packing machine conveyor automatically, achieved high efficiency production of large-capacity extrusion line.
5)It can equip with liquid nitrogen refrigeration
TECHNICAL PARAMETERS
| No. | Parameter | Unit | DTB-880 |
| 1 | Maximum Capacity | Piece/h | 18000-22000 |
| 2 | Compressed air | Mpa | 0.6 |
| 3 | Air consumption | M³/min | 0.2 |
| 4 | Voltage/ Frequency | V/Hz | 380/50 |
| 5 | Total Power | Kw | 6 |
| 6 | Dimension(L×W×H) | mm | 3630×2050×1780 |
| 7 | Weight | Ton | 1.2 |
