China paper Machine Manufactory 2400mm Exercise Book Paper Line

Product Description

China Papper Machine Manufactory 2400mm Exercise Book Printing Paper Line Price


Technical parameters :
1. Raw material of China papper machine manufactory 2400mm exercise book printing paper line: waste paper;wood pulp board
2. Output paper: office paper, writing and printing paper
3. Output paper weight: 60-80g/m2
4. Net paper width: 2400mm
5. Wire width: 2950mm
6. Capacity: 30 tons/day
7. Rail gauge: 3400mm
8.Drive way: A/C converter speed control, section drive.
The structure and specifications:
1. Wire part:
Open type head box,Forming table for wire: 13 meters length, the forming table clad by
stainless steel board,Frame made of Q235 steel, and clad by stainless steel board.
2.Vacuum de-watering part
Liquid ring vacuum pump, Forming plate, 5piece hydrofoil box, Vacuum suction box, Φ700 vacuum couch roll
3.Press part:
2 groups of press part, each part includes one set of natural and one set of rubber roll
4.Dryer part :
In this part, includes 12sets of dryer cylinders, arranged 8sets + sizing machine + 4sets
5.Sizing part :
2400mm sizing machine 1set
6.Calender part:
2400mm 2 rolls calendering machine

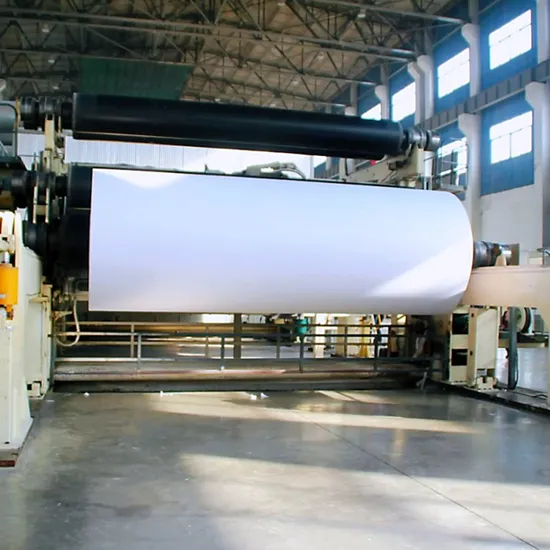

7.Winding & rewinding part
2400mm horizontal pneumatic reel;2400mm rewinding machine
8.Driving and controlling part
Frequency conversion controlling Cabinet
Main structure with spec of stock preparation for China papper machine manufactory 2400mm exercise book printing paper line:

No.	Equipment	Function
1	8m conveyor	to transport the raw materials into the hydra-pulper
2	5m3 high consistency hydra-pulper	to stir the raw materials at high speed and make them into pulp for the first step
3	high consistency cleaner	to remove the heavy big impurities in the pulp
4	High-speed pulp washer	to wash out the waste water from the pulp, make the pulp clean
5	0.6m2 Pressure screen	to screen out the impurities in the pulp by high pressure
6	1.8m2 Vibrating screen	to screen out the impurities through vibrating
7	low consistency sand remover	to remove the sands and tiny impurities in the water and pulp
8	Φ450mm double-disc pulp refiner	to grind the coarse pulp into fine pulp
9	Φ700mm propeller	to stir and resolve the pulp in pulp pool
10	1.2m2 Pressure screen	to defibering pulp
11	pulp pump	to lift the processed pulp into the necessary section
12	water pump	to lift the water into the necessary section
13	Electrical operating cabinet	to control the on/off of the whole production line

Company Information Zhengzhou Dingchen Machinery Co., Ltd is a professional paper machine manufacturer integrated with scientific research, design, manufacturing, installation and commission. Focused on R&D and production, the company has over 30 years' experience in paper machinery and pulping equipment production. The company has a professional technical team and advanced production equipment, with over 150 employees and covering an area of 45, 000 square meters.
The company's leading products include various types of high speed and capacity test liner paper, kraft paper, carton box paper machine, cultural paper machine and tissue paper machine, pulping equipment and accessories, which are widely used in the production of packaging paper for various items, printing paper, writing paper, high grade household paper, napkin paper and facial tissue paper etc.
Based on high quality products and service, the company has been recognized by overseas customers and markets, its products has been exported to Pakistan, Uzbekistan, Turkmenistan, Bangladesh, Cambodia, Bhutan, Israel, Georgia, Armenia, Afghanistan, Egypt, Nigeria, Kenya,
Burkina Faso, Sierra Leone, Cameroon, Angola, Algeria, El Salvador, Brazil, Paraguay, Colombia, Guatemala, Fiji, Ukraine and Russia etc.
