Ls252dl Portable Leeb Hardness Tester Digital Durometer Hardness Tester Durometer for Metal

Product Description

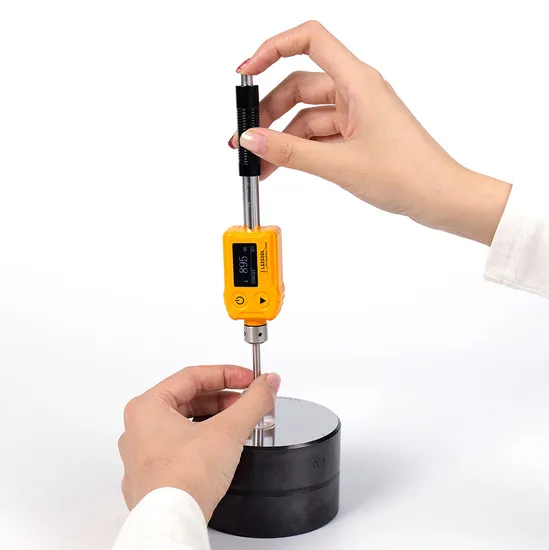

Product Parameters LS252DL Portable Metal Confined Space Leeb Hardness Tester Digital Durometer DL Impact Hardness Tester Durometer for Metal Descriptions: LS252DL Leeb hardness tester utilizes DL impact device for testing on grooves or gears where space is tight. The hardness tester uses advanced dual coil technology for good repeatability and high accuracy. The durometer for metal probe with orientation sensor compensates for measurement errors in different impact directions automatically. The leeb hardness tester has various hardness scales, which can be interchanged between Leeb (HL), Vickers (HV), Brinell (HB), Shore (HS), Rockwell (HRA/HRB/HRC). The instrument is equipped with various metal materials to choose from, adapting to different metal hardness testing needs. Features: 1. DL impact device for testing on grooves or gears where space is tight.
2. It uses advanced dual coil technology for good repeatability and high accuracy.
3. Equip with orientation sensor compensates for measurement errors in different impact directions.
4. The durometer has various hardness scales, which can be interchanged.
5. Various materials can be selected, including steel, alloy tool steel, stainless steel and so on.
6. Impact device DL is partly made of Tungsten carbide, and its hardness is almost equal to the diamond.
7. Using rechargeable lithium battery, the battery can be charged simply from USB port.
8. Users can calibrate the standard parts to eliminate the error. Specifications

Parameter	Value
Probe	Impact device DL
Hardness Scales	HL, HV, HB, HS, HRA, HRB, HRC
Measurement Range	HLD: (170-960); HV(194-976); HB(188-651); HRC(17.6-68.5); HS(29.54-99.5); HRB(91.5-100); HRA(60-85.8)
Resolution	1HL
Accuracy	±12 HL, ±6 HL typical
Repeatability	6HL
Display	128 * 64 dot matrix OLED
Power Supply	Rechargeable lithium battery 3.7V@250mAh, full charge for over 5000 continuous measurements
Charging Port	USB(Type-C)
Size	203*34*24 mm
Weight	78g
Working Temperature Range	-10~50ºC,0~85%RH(no condensation)
Storage Temperature Range	-10~60ºC,0~85%RH(no condensation)

Product Description

No.	Description	Quantity	Unit
1	Leeb Hardness Tester	1	Set
2	Nylon Brush	1	Pcs
3	Small support ring	1	Pcs
4	USB Data Cable	1	Pcs
5	User Manual	1	Pcs
6	Certificate / Warranty card	1	Pcs

Company Profile
Packaging & Shipping

Packing	Air Carton /Express Packaging/ Shrink Package
Delivery Terms	EXW, DAP, Express Delivery
Delivery Time	5-10 days in stock
Port	Shenzhen

FAQ Q: What's the difference between LS251D hardness tester digital and LS252D Leeb hardness tester? A: LS251D is separation design, LS252D as integrate design, more compact portable; LS251D can measure tensile strength (σb); LS251D has QC inspection; LS251D is equipped with standard hardness blocks, which can be used for calibration; other integrated models are not equipped and need to be purchased separately; LS251D is packed in engineering plastic box, and other integrated products are packed in color gift box Q: What's the difference between LS252D and LS252DC? A: The probe devices are different. LS252D metal durometer is a D-type impact device and LS252DC digital durometer is a DC type impact device. The loading modes are different. LS252D pen type portable leeb hardness tester is press loading and LS252DC is push loading. Q: What is the difference between a type D impact device and a type DC impact device? There are D /C /DC /D+15 /G type impact devices, according to the actual situation of the workpiece to meet different needs. D is a standard probe suitable for most scenes, DC type is suitable for very cramped places (inside the hole, cylinder) measurement. Q: How to place order?
A: Talk to service staff, confirm machine details, after confirmed the order, we will send you PI to confirm.
Q: What is your warranty? And do you have technique support?
A: Our warranty is 1 year. We have technique support and training. We can also offer on-site serive if need.
Q: How Long is your lead time?
A: It depends on the different products.
Q: How to Pay? A: We accept T/T, and Global Pay
Q: Do you provide OEM or ODM service?
A: Yes, we have over 15 years experience for OEM and ODM serivce. Add your logo on machine is also ok for us.
Q: What's the shipment ways you can provide?
A: By Air, By sea, By Truck, By Express(door to door): DHL, UPS, FedEx, TNT, SF, EMS ect.
