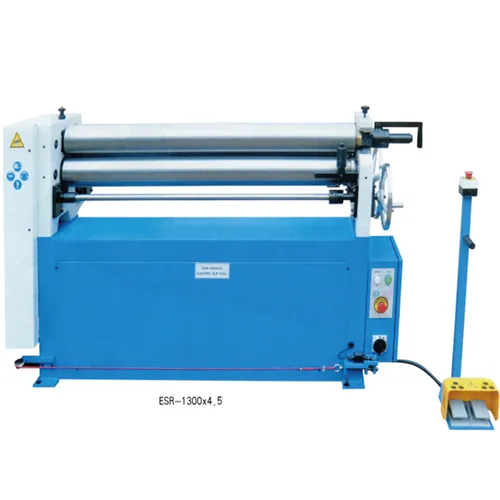

Metal Sheet Slip Rolling Machine

Product Description

metal sheet slip rolling machine
1. Asymmetrical roll bending machine with 3rolls
2. High strength steel rolls
3. Fixed top roller, adjustable lower and rear rollers
4. Standard series wire core groove
5. Top roll swings out across cam lock
6. Supplied with conical bending feature
Before connecting machine into local 3-phase AC source at your plant, please
Double check same voltage and phase.
· Connect the AC source with machine cable which has 4 wires, correctly, the ground
Wire must to be connected with ground.
· After connecting AC source to shaft motor rotation is in the correct rotation direction
As per the arrow on the motor.
· If wrong direction, please immediately stop motor to avoid motor damage. Please
Correct your connecting at AC source until motor rotation direction is in correct
Direction.

Model	ESR- 1300X1.5	ESR- 1020X2	ESR- 1300X1.5E	ESR- 1300X2.5	ESR- 1300X4.5	ESR- 1550X3.5	ESR- 2020x3.0
Max rolling thickness (mm)	1.5	2.0	1.5	2.5	4.5	3.5	3.0
Max rolling width (mm)	1300	1020	1300	1300	1300	1550	2020
Motor power (kw)	1.5	1.5	1.5	1.5	2.2	2.2	4.0
Packing dimension (cm)	190X55X110	174X70X126	190X55X110	180X64X100	181X64X105	206X64X105	253X64X105
N.W/G.W (kg)	280/340	260/300	280/340	470	660	750	950

Our Services
1. Your inquiry and email will be replied within 24hours.
2. If you need to develop products with your own specification, we can help you to work it out.
3. Always be honest, never lie to customer, and never declare anything we don't have.
4. Customer First:,we offer best Quality and Service!
FAQ
1. Payment Method:
30% deposit T/T in advance, rest against the copy of B/L or before delivery.
2. Delivery Time:
one week
3. MOQ:
1 set machine.
If you need machine with your own specification, logo, packing, etc, please negotiate with us.
4. Shipping:
For machine: Usually by sea;
For documents: by international express, eg. DHL,TNT or EMS
