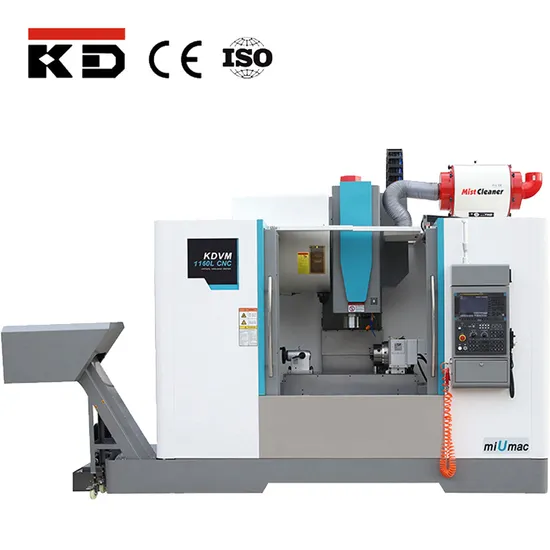

Precision CNC Milling Machine with Bt40 Spindle - Model Kdvm1160L
| US$41,985.00-43,516.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
KDVM1160L
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
X Travel
1100mm
Y Travel
600mm
Z Travel
600mm
Spindle
Bt40
Spindle Speed
50~8000rpm
Main Motor
11/15kw
Transport Package
Wooden Pallets(Ht)
Specification
CE, ISO9001,
Trademark
KD
Origin
Zhejiang China
HS Code
8458110000
Production Capacity
523
Product Description
CNC Milling Machine Lathe Manufacturer in Machine Tools Business for 66 Years Product FeaturesProduct Specifications
| MODELS | KDVM1160L |
| TRAVEL | |
| X axis | 1100mm |
| Y axis | 600mm |
| Z axis | 600mm |
| Spindle center to column | 640mm |
| Spindle end to table | 120-720mm |
| TABLE | |
| Tablesize | 1250×600mm |
| T-slot (width×number×space) | 18mm×5×100mm |
| Max.table loading | 800kg |
| SPINDLE | |
| Taper bore of spindle | BT40 |
| Spindle power | 11/15kw |
| Spindle speed | 8000rpm |
| FEED | |
| X/Y/Z fast travel speed | 36/ 36/ 30m/min |
| Torque axis motors | 20/ 20/ 20Nm |
| ATC | |
| Tool number | 24 |
| Max. tool size (With adjacent tool) | Ф76mm |
| Max. tool size (Without adjacent tool) | Ф150mm |
| Max.tool length | 300mm |
| Max.tool weight | 8kg |
| Time (tool-tool) | 1.8s |
| ACCURACY | |
| Positioning accuracy for X/Y/Z | ≤0.013/0.010/0.010 mm |
| Repeatability | ≤0.005mm |
| Min.Input | 0.001mm |
| OTHERS | |
| Coolant pump motor | 0.55kw |
| Overall dimension (LxWxH) with auto conveyor | 4400x2550x2600mm |
| Net weight | 6500kg |
