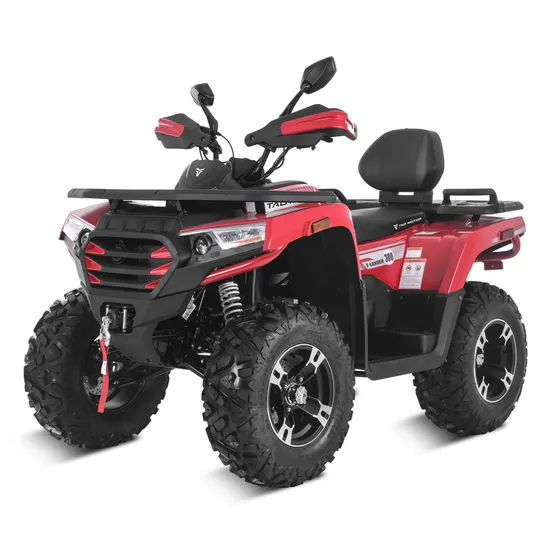

Tao Motor 2024 New Shaft Driving Farm Use Quad Bike 300cc ATV
Basic Info.
Model NO.
TITAN 300 RED
Max Power
23HP
Front Tire
24×8-12 Radial
Rear Tire
24×10-12 Radial
Transmission Type
Automatic
Engine Type
4 Stroke
Structure
Without Door
Displacement
300CC
Transmission System
Shaft Drive
Fuel
Gas / Diesel
Brake Type
Disc Brake
Maximum Speed
>75 km/h
Power
>1000W
Certification
CE, EEC, EPA, ISO9001, DOT
Condition
New
Brand
Tao Motor
Transport Package
Iron Frame with Carton
Specification
2 Seater
Trademark
Tao Motor
Origin
Zhejiang, China
HS Code
8703101100
Production Capacity
5000PCS/Month
Product Description
Product DescriptionProduct Parameters
| Model No : | TITAN 300 |
| Type | LONCIN 270cc,Water- cooled,4-stroke,1-cylinder, EFI SYSTEM |
| Starting | Electric start |
| Transmission | L-H-N-R (H-speed and L-speed ) |
| Drive Train | Shaft Drive |
| Max. Torque | 24.5Nm/5000r/min |
| Max. Power | 17kw/7000r/min |
| Suspension/Front | Independent double swing arm |
| Suspension/Rear | Single swing arm |
| Brakes/Front | Ventilated Hydraulic disc |
| Brakes/Rear | Ventilated Hydraulic disc |
| Tires/Front | 24×8-12 radial |
| Tires/Rear | 24×10-12 radial |
| L x W x H | 1920*1090*1190mm |
| Seat Height | 860mm |
| Wheelbase | 1205mm |
| Ground Clearance | 200mm |
| Battery | 12V/12Ah |
| Fuel Capacity | 14L |
| Dry Weight | 260kg |
| Max. Load | 200kg |
| Package Size | 1960*1120*820mm |
| Loading Quantity | 12pcs/20'GP;36pcs/40HQ |
| Max. Speed | 85km/h |
