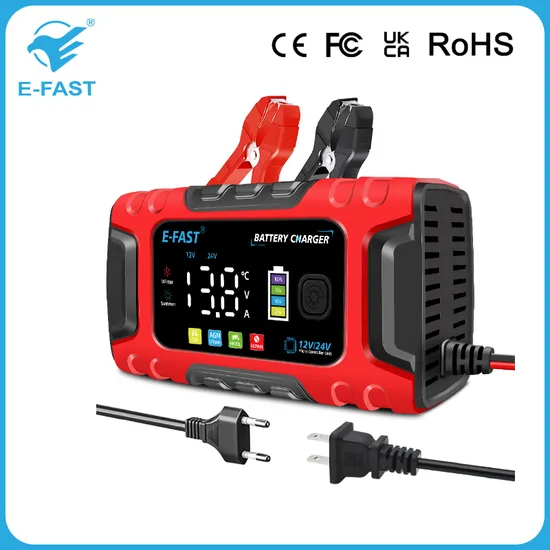

Tk-600 12V10A 24V5a Lead Acid LiFePO4 Battery Charger

Product Description

Product Description
New arrival 2024 products E-Fast 12V/24V smart car battery charger intelligent repair battery charger for Lead Acid LiFe PO4 AGM and GEL battery

Product Name		New Design E-Fast TK600 12V 10A 24V 5A Automatic Intelligent Pulse Repair Battery Charger with CE ROHS FCC Certified
Type		CAR CHARGER, Fast Charger
Material		ABS
Protection		Short Circuit Protection, Over-charging, Overcurrent, Overvoltage
Charger model		TK-600
Input voltage and current		100-240V AC ,50-60Hz
output voltage and current		12V/10A,24V/5A
Output Power		140W
Place of Origin		China
Style		Universal Battery Charger
Certification		CE FCC ROHS PSE
Apply to		car,motorcycle,Scooter
Size		170(L)*100(W)*65(H)mm
Warranty		1 Year
Protection		-Polarity protection -Output short protection -Short circuit protection -Overvoltage protection -Overcurrent protection -Overheating protection -Reverse connection protection

Product details

Product function
(1) Output short circuit and anti reverse connection: The 12V6A Battery Charger has a prompt for output short circuit and reverse connection of the battery (reverse connection 1-2S detection, when reverse connection or short circuit is detected, the LCD displays "ERO", and the product will not be damaged due to reverse connection or short circuit during the detection process), and during reverse connection, there will be no reverse connection spark phenomenon after processing by a microprocessor program.
(2) Battery power detection:
Without connecting to the AC input voltage, the battery clip is sandwiched between the positive and negative electrodes of the battery (red, positive, black, negative), and the current and voltage parameters of the battery can be displayed (digital tube display data: voltage and ambient temperature cycle display, the power grid is displayed in percentage form based on the detected data, the first power on 6S self check wait, 6S not reached only display temperature, 6S reached temperature and voltage cycle display).
(3) Winter/Summer Mode:
During the charging process, detect the ambient temperature, adjust the charging state of the product in a timely manner, and ensure battery life and charging safety. Winter Mode: LCD displays snowflakes, Summer Mode: LCD displays the sun (unique to car mode, not available in other modes).
(4) Over temperature protection:
The TK360 12V6A Battery Charger has an over temperature protection function. If the product detects excessive temperature, it will automatically start the over temperature protection program. When the temperature returns to normal, the initial charging state will be restored.
(5) Overcharge protection:
The TK360 12V6A Battery Charger has an overcharge protection function to prevent overcharge from reducing the battery life and enhancing the reliability of charging safety (the maximum charging duration is 15.5-16.0H by default).
(6) Battery charging progress bar:
The charging progress bar is displayed during the charging process of the product, in the form of a percentage, and the full charge display is 100%.
(7) LCD display status:
a: Full state: LCD displays "FUL".
b: Clip disconnection mode: LCD displays "OFF".
c: Fault mode: LCD displays "ERO".
e: Charging state: LCD circularly displays voltage, current, and charging progress.
f: Repair mode: LCD displays "PUL", and the repair icon flashes.
h: Repair completed: LCD display "FUL" repair icon is always on.
g: Detect battery power: LCD cycle displays voltage, and battery power is displayed as a percentage. Company Profile
