20FT Cryogenic Liquid Argon CO2 ISO LPG Pressure Tank Containers (Cryogenic Liquid Tank T75)

Product Description

Product Description

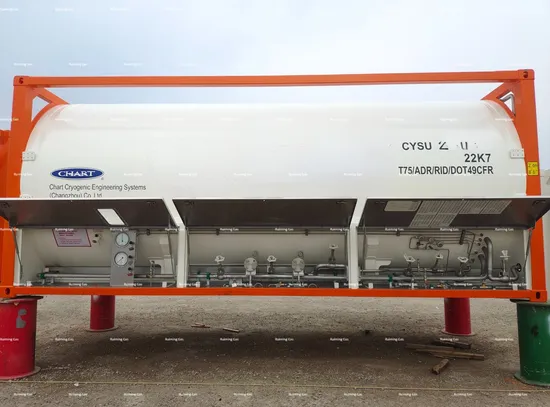

T75 ISO Tank Container

The 20-foot ISO framework type tank container is applicable to Intermodal transportation. Marine, highway, and railroad transportation. With its overall dimensions conforming to the ISO standards, the tank container has a rating for as high as 9 high stacking loaded. Various components such as valves, safety accessories, heating, cooling components, insulation, walkway, and ladders can be configured according to specific client needs and product requirements to store and transport chemicals globally.
We work directly with each customer to ensure their specific needs are met. Our ISO tank containers can be heated or non-heated, insulated or non-insulated with multiple storage capacities.
We meet all safety standards and regulations so customers can transport a variety of liquids, including water, fuel, food-grade products, hazardous chemicals, Bitumen, compressed gases and more. All ISO tanks are designed to meet your specific needs.
Product Parameters
Medium: LO2 /LN2 /LAr/LCO2 /LN2O/LNG/ LC2H4/ LC2H6

1.0 General
Type of product	:	Intermodal ISO Container UN T75
Medium	:	LO2 /LN2 /LAr/LCO2 /LN2O/LNG/ LC2H4/ LC2H6
MAWP.	:	22 bar
Water capacity	:	21 100 Liters
Filling ratio	:	95%/90%/80%
Tare weight	:	8 700kg(f3%)
Load weight	:	27 300 kg
Maximum gross weight:	:	36 000 kg
Stacking	:	192 000 kg
Design code	:	ISO1496 ,IMDG ,ADR , RID , ASME, US-DOT
Approvals	:	CCC, CSC
Approval and inspection org	:	Lloyd's Register
2.0 Inner vessel
Design code	:	ASME SECT.Đ DIV.1 with U stamp(Mandatory Appendix 44)
Material	:	Stainless steel(SA240 304N)
Design temperature	:	50ć
MDMT	:	-196ć
Baffles	:	Two transverse baffles
Surface treatment	:	Pickling
3.0 Out jacket
Material	:	Carbon steel(Q345R)/Stainless steel(S30408)
Design temperature	:	50ć
MDMT	:	-40ć
Surface treatment	:	Shot blast to SA 21/2
4.0 Insulation
Type of insulation	:	Vacuum with multi-layer super insulation
Vacuum	:	≤0.1Pa( Warm)
Net evaporation rate	:	0.34% /d ( LN2 ) (ambient conditions:100kPa and 15ć)

Installation Instructions

Factory Plant
Total capacity of O2 :3,450,000Nm³/h
Other gas Capacity: 886,000Nm³/h
Liquid capacity: 15000 TPD

For smaller, more specialized applications, we offer argon gas in high-pressure gas cylinders and liquid argon in dewars in a variety of sizes.
We offer a bulk liquid delivery system with a variety of argon tank sizes and purities available to suit your operations. We also offer Microbulk on-site gas delivery as an alternative to cylinders.
We focus on the development of large-scale site, clean energy, retail and engineering business, supply high-quality industrial gas products such as oxygen, nitrogen and argon through on-site pipelines and liquid gas supply, and provide syngas clean energy solutions based on hydrogen and carbon monoxide, helping the development of metallurgy, chemical, semiconductor, electronics, photovoltaic, food, medical and health, new materials, energy, environmental protection and other industries to continue to create value in many fields closely related to the national economy.
Certifications
Company Profile
FAQ
1.Are you factory or trading company?
A: We are both factory and trading company. Welcome to visit our factory.
2.What's Your Main Sales Products?
A: We mainly supply gas products , such as argon , helium , CO2, SF6 , CF4, ect.
3.What about payment and delivery time?
A: payment term: 30% for deposit, balance against copy of BL; L/C at sight.
Delievry time is usually 10-30 days .
4.How to ensure your product quality?
Quality is the life of each company .
We have ISO9001, TUV , CE, FDA certificate.
Over 20 years gas filed operation experience and export experience.
5.How do your make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers benefit.
2. We respect every customer as our friend and we sincerely do business and make friends with them no matter where they come from.
