Drilling Machine Drilling Machinery Z5163 Z5180 Z51100
| US$5,000.00-12,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
Z5180C
Controlling Mode
Artificial
Hole Diameter
50-100mm
Automatic Grade
Manual
Precision
High Precision
Certification
CE, ISO 9001
Condition
New
Max.Drilling Dia(mm)
80 mm
Spindle Taper
Mt6
Spindle Travel(mm)
250 mm
Spindle Box(mm)
250 mm
Spindle Speed Range(R/Min)
40-570,9 Steps
Feed (mm/R)
0.1-0.78,6 Steps
Table Size (mm)
650-550
Main Motor (Kw)
5.5 Kw
Table Travel (mm)
300mm
Name
Drilling Machinery
Transport Package
1452*965*2787 mm
Specification
2500 kgs
Trademark
tokmc
Origin
Shandong
HS Code
84592900
Production Capacity
100 Sets/Year
Product Description

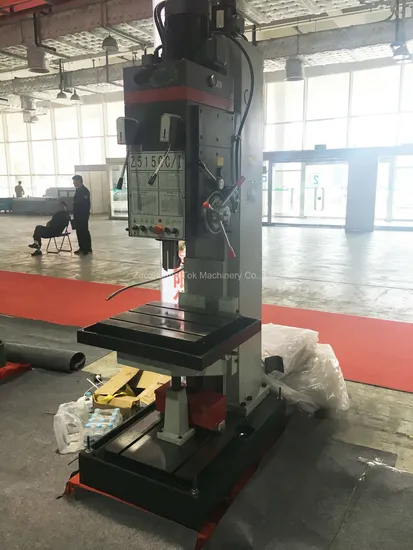

hand drilling machine, deep hole drilling machineFeature: Box type vertical drilling machine series can complete the processing of drilling ,boring,reaming, coutersinding, tapping . There are high precision ,good rigidity,strong torque,low noise and wide range of speed adjustment features The machine has automatic tapping reverse structure,the principle axis tapping can automatically recerse clockwise,and it is convenient for tapping in head hole and deep hole
| Specification | Z51100 | Z5180C | Z5163C |
| Max.drilling dia(mm) | 100 | 80 | 63 |
| Maximum feed resistance(N) | 45000 | 30000 | 30000 |
| Max.The spindletorque(N.m) | 1150 | 800 | 800 |
| Spindle Taper | Morse No.6 | Morse No.6 | Morse No.5 |
| Distance from spindle to guideway (mm) | 480 | 375 | 375 |
| Spindle travel(mm) | 310 | 250 | 250 |
| Spindle box(mm) | 300 | 250 | 250 |
| Spindle speed range(r/min) | 26-320,6 steps | 40-570,9 steps | 40-570,9 strps |
| Feed (mm/r) | 0.096-0.717,6 steps | 0.1-0.78,6 steps | 0.1-0.78,6 steps |
| Table travel (mm) | 300 | 300 | 300 |
| Table size (mm) | 760-650 | 650-550 | 650-550 |
| Max. Distance from spindle to table surface(mm) | 850 | 800 | 800 |
| Main motor (Kw) | 7.5 | 5.5 | 5.5 |
| Coolant pump(L/min) | 25 | 25 | 25 |
| Machine size(mm) | 1465*970*3170 | 1452*965*2787 | 1452*965*2787 |
| Weight (Kg) | 3500 | 2500 | 2500 |
