Ce Certificate High Quality 1bqx Series Tractor Mounted light Duty Disc Harrow Hot Sale in India

Product Description

CE certificate high quality 1BQX series tractor mounted Ligh duty Disc harrow hot sale in India
1BQX series Disc harrow Main Features, Usage, Specification and Technical parameters:

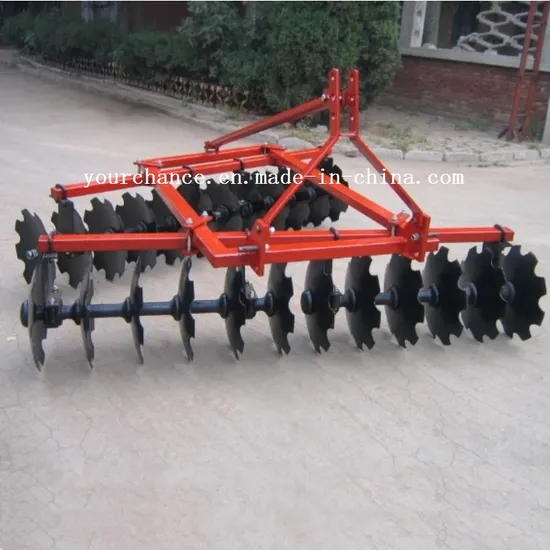

1BQX Series Light-duty Disc Harrow
Main Features and Usage:
The 1BQX series Light-duty Disc Harrow is mainly suitable for pulverizing and loosening clods after ploughing and for planning the land before sowing on cultivated land. The machines can make soil and fertilizer mix up, and clear away the stump of plants on light or medium soil and preparing seed bed for planting.
Its frame are made of qualified steel tube, The structures are simple and reasonable, strong and durable, convenient to operate, easy to maintain and efficient in pulverizing and penetrating into the soil and leaves the land with a smooth, even tilth. All these satisfy the agricultural requirements of intensive cultivation.
The 1BQX series suspension Light-duty Disc Harrow's front and rear gangs are all assembled with scalloped disc, could be used with from 12HP to 80HP tractors.
Main Specification and Technical Parameters :

Model	1BQX-1.1	1BQX-1.3	1BQX-1.5	1BQX-1.7	1BQX-1.9	1BQX-2.3	1BQX-2.7
Working width (m)	1.1	1.3	1.5	1.7	1.9	2.3	2.7
Working depth(mm)	120	120	120	120	120	120	120
Q'ty of disc	12	14	16	18	20	24	28
Disc diameter(mm)	460	460	460	460	460	460	460
Total weight(kg)	200	220	240	260	310	420	500
Matched power(HP)	12-20	15-25	25-35	30~35	35~45	50-65	55-75
Linkage	Standard three-point mounted

High quality 1BQX series Disc harrow have ISO,CE, PVOC COC, CO etc certificates:
1BQX series Disc harrow by Iron crate case packing :
Best price will be quoted for you as soon as receive your Requirement !
