1.2m Drive Away Satellite Antenna

Product Description

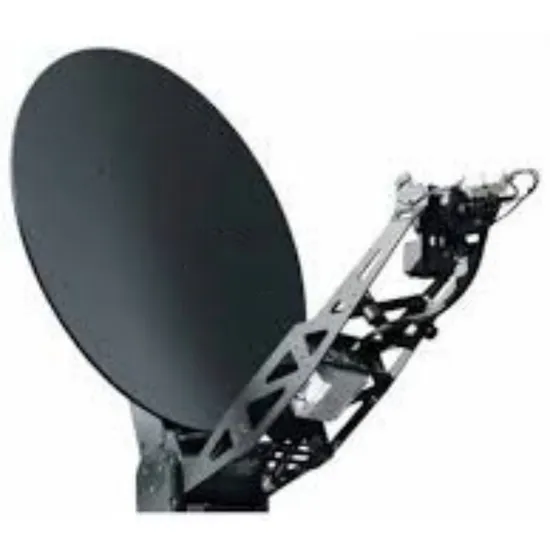

Product Picture

RF PERFORMANCE
Antenna Aperture			1.2m
Operation Frequency	Tx		14.0-14.5GHz
	Rx		12.25-12.75GHz
Gain	Tx		>42.7 dBi
	Rx		>41.8 dBi
Polarization			Linear
Cross-polarization	Tx		>30 dB
	Rx		>30 dB
VSWR	Tx		1.30 :1
	Rx		1.30 :1
3dB beamwidth	Tx		1.2°
	Rx		1.38°
Power Capacity			1KW
Feed Interface			WR75
Tx/Rx Isolation			Rx >40dB; Tx >85dB
(1°≤θ<20°) Sidelobe			Azimuth 1°-20°29-25 log θ dBi First sidelobe <-20db
MECHANICAL
Antenna Type		Offset antenna
Main reflector material		Carbon fiber
Weight		≤50Kg
Elevation		10°- 85°
Azimuth		±180°in 0.1°Step
Polarization		±95° in 0.1°Step
ENVIRONMENTAL
Wind for operational		20m/s
Wind for Survival		30m/s
Wind for survival stowed		180Km/h
Temperature operational		-20ºC -- +60ºC
Temperature store		-40ºC -- +80ºC
Sealing class		IP65

Certifications
Packaging & Shipping
To better ensure the safety of your goods.professional,environmentally friendly,convenient and efficient packaging services will be provided Company Profile
Xian Efine Telecom Technology Co.,Ltd is a leading microwave waveguide components,assemblies and antenna systems manufacturer in China. Established in 2011,Ef Telecom is continually growing to meet customer's needs.
Our highly trained design engineers and manufacturing personnel can handle both standard and custom products to meet your needs.
Our in house design, manufacturing, inspection and quality control capabilities allow fast response to customer requirements.
Our standard delivery time is only half of the average western supplier's standard delivery time.
Our microwave measurement capability up to 60GHz makes us the best choice for the design and manufacturing of your components.
TQM (Total Quality System) and SOP (Standard Operation Procedure) with ISO 9001:2017 certification, which assures WinFine Telecom's strong commitment to quality standards and customer satisfaction. We are confident we offer well-engineered, high quality products at globally competitive prices. Our mission is to satisfy our customers by providing timely and cost effective solutions without compromising quality, performance and delivery. Our Advantages Since 2006,Ef has become a critical supplier and partner to major companies serving the Aerospace, Radar, Defense, Medical, Communications and Specialty Test industries.Ef's product offerings include:
