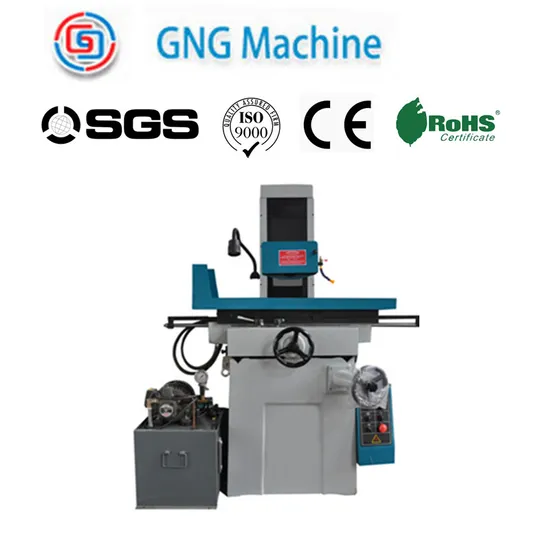

Hydraulic Automatic Precision Grinder
| US$4,000.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
MY820
Table Maximum Cutting Area (Lxw)(Mm)
520X200
Number of T -Slot (Mm)
1X14
Spindle Speeds (50Hz)(R/M)
2850
Transport Package
Carton or Wood Case
Specification
CE ISO
Trademark
GNG MACHINE
Origin
China
HS Code
84571010
Production Capacity
1000 Sets/Month
Product Description
Characteristics of machine tools:The machine is reasonable in structure, good rigidity, beautiful appearance, convenient operation.
Using precision plastic guide surface and precision scraping, grinding imported hydraulic transmission, drive by synchronous.
The main mechanical valve is a special valve grinder, is divided into two parts, the mechanical commutation control, throttle control. Throttle control part and unloading function, can realize the station start and stop.
Grinding can be all kinds of plane and complex shaped surface, suitable for motor without grinding the feed, according to user needs with a permanent magnet sucker or electromagnetic sucker.
| Model | MY820 | |||
| Bench | Max table surfacing size (L×W×H) (×) | m | 480×200 | |
| Max stroke (L × W) (×) | m | 520×220 | ||
| Table maximum cutting area (L × W) (×) | m | 520×200 | ||
| Number of T -Slot T (×) | mm | 1×14 | ||
| The grinding head | Distance From Table Surface To Spindle Center | mm | 450 | |
| Wheel Size(dia×width×bore) (WA46K5V) (××) | mm | ø200×20×ø31.75 | ||
| Spindle speeds (50HZ) | r/m | 2850 | ||
| The amount of feed | Table longitudinal running speed (stepless) ()() | m/min | 3--20 | |
| Table horizontal (before and after) the amount of feed () | Continuous (variable speed) () | mm/min | 150 | |
| Intermittent (stepless) () | mm/ | 0-5 | ||
| The handwheel rotates | mm | 2.5 | ||
| Hand wheel each grid | mm | 0.02 | ||
| Vertical (up and down) feed wheel feed () | The handwheel rotates | mm | 1.25 | |
| Hand wheel each grid | mm | 0.01 | ||
| Motor power | Spindle motor | kw | 1.5 | |
| Cooling motor | w | 40 | ||
| Hydraulic system | Hydraulic motor | kw | 1.5 | |
| Working Pressure | Mpa | 3 | ||
| Oil tark capacity | L | 80 | ||
| Max. Capacity | L/min | 18 | ||
| Working precision | The machined surface of the base of parallelism | mm | 300/0.004 | |
| Surface Roughness | μm | Ra0.32 | ||
| Weight of machine | Net | T | 1.05 | |
| Cross | T | 1.15 | ||
| Machine Size (L×W×H) (××) | mm | 1680×1140×1720 | ||
