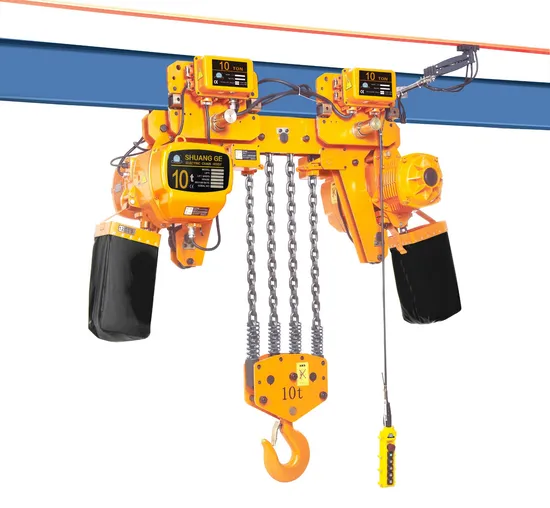

Whd5 Series Electric Chain Hoist with Trolley

Product Description

Product feature:
1. WHD5 electric chain hoist is a new kind of product we developed recently.
2. It has such characteristics as fast lifting speed, convenient operation and beautiful appearance. Especially, its unique overloading safety protection setting and electrical machine hot protection setting make sure of the higher reliability of this product.
3. It is widely used in lifting light and small goods. It can also be used in low-level space materials circulation system by mating with aerial travelling crane equipment.
4. This product attests to be effective equipment which can improve working condition and enhance labor efficiency, Optional wireless remote controller.
Advantages:
1) Long history and famous brand: Established in 1972, with the famous brand of Shuang Ge, Peace Bird, Wuyi.
2) OEM experience
3) Scale of production: More than 400 employees and covers a total area of about 200, 000 square meters.
4) Honor and Certification: CE, GS certification by TUV. Two-time national gold award, this is issued by the government of China.
5) Equipment: 22 sets Original Wafios device.
6) Team: More than 100 professional technical team, and more than 50 salesman with the World-wide sales network.
7) Market occupancy: Almost 90% Southeast Asian market are SHUANG GE brand.

Model	capacity(ton)	Standard lift(m)	Test Load(Kn)	Motor Power	No.of Chain	Dia of chain(mm)	Lifting speed(m/min)	Net Weight(kg)	Extra weight per meter of extra lift(kg)
WHD5-0.5-01S-H	0.5	3	6.25	1.1	1	6.3	7.2	47	0.81
WHD5-01-01S-H	1	3	12.5	1.5	1	7.1	6.8	65	1.1
WHD5-01-02S-H	1	3	12.5	1.1	2	6.3	3.6	53	1.62
WHD5-1.5-01S-H	1.5	3	18.75	3.0	1	10.0	8.8	108	2.3
WHD5-02-01S-H	2	3	25	3.0	1	10.0	6.6	108	2.3
WHD5-02-02S-H	2	3	25	1.5	2	7.1	3.4	73	2.2
WHD5-2.5-01S-H	2.5	3	31.25	3.0	1	11.2	5.6	115	2.8
WHD5-03-01S-H	3	3	37.5	3.0	1	11.2	5.6	115	2.8
WHD5-03-02S-H	3	3	37.5	3.0	2	10.0	4.4	131	4.7
WHD5-03-03S-H	3	3	37.5	1.5	3	7.1	2.2	85	3.3
WHD5-05-02S-H	5	3	62.5	3.0	2	11.2	2.8	145	5.6
WHD5-7.5-03S-H	7.5	3	94	3.0	3	11.2	1.8	176	8.4
WHD5-10-04S-H	10	3	125	2×3.0	4	11.2	2.8	300	11.2

FAQ
Q1:Why Choose Wuyi Lifting?
A:Wuyi established in 1952,more than 70 years experience in the chain hoist field with professional technical team.
Q2 :Can I have samples to test?
A: Yes, Sample can be sent for testing.
Q3. Q:Guarantee
A: One year
Q4: Q:OEM service
A: OEM service is available.\
Q5. What's the lead time for regular order?
A: The normal delivery time is 30-45 days.
Q6. What is your payment terms?
A: 30% T/T in advance, 70% balance before shipment or L/C.
Q7. What is your terms of packing?
A: Cartons with Pallet or wooden case
Q8. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
