Fashion Single Suction Middle Pressure Haishi Irrigation Fire Submersible Water Vertical Centrifugal Pump

Product Description

demonstration of the type	range of application	performance parameter
HZA50-250	Oil refinery, petrochemical industry, coal processing industry and cryogenic engineering	discharge:~2600m³/h
HZA:Foot support series	Chemical industry, paper, pulp industry, sugar industry	head:~250 m
HZAO:Open impeller series	General process industry, water supply plant, seawater desalination plant	Rotational speed.1450~2950r/min
HZE:Center support series	Heating and air conditioning system power plant	Design pressure:~2.5MPa
HZEO:Center support open impeller series	Environmental protection engineering	Service temperature:-40ºC~180ºC
50:Pump outlet diameter 250:Nominal diameter of impeller	Shipbuilding and Marine industry	Center support:-40ºC~450ºC

1. Pump body 2. Seal ring 3. Impeller 4. Pump foot 5. Pump cover 6, shaft seal 7. Non-drive end bearing 8.Bearing bracket 9.Drive end bearing 10.Shafting

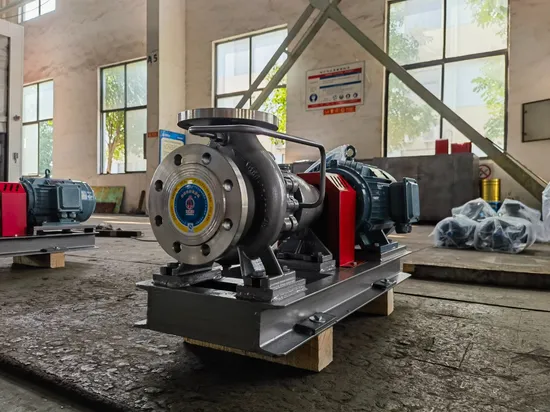

HZA and HZE series petrochemical process pumps are horizontal, radially split, single-stage cantilevered centrifugal pumps with a volute-type pump body. They are designed and manufactured in accordance with API 610, "Petroleum, Refinery, and Gas Industry Centrifugal Pumps." This series of pumps has been carefully designed in terms of support, connection, bearing, cooling, and other structural aspects, and can be equipped with various auxiliary and monitoring systems to ensure high safety and reliability, long service life, ease of maintenance, and interchangeability of parts, with a limited number of spare parts. The pumps have excellent hydraulic performance, high efficiency, and good cavitation resistance, and are at the leading level internationally, making them the next generation of high-efficiency and energy-saving products. The pumps have a variety of transformation structures, and can provide the best configuration solutions for various complex operating conditions. The sealing system is designed in accordance with API 682, "Centrifugal and Rotodynamic Pump Shaft Seal Systems," and can be equipped with various types of seals and flushing and cooling schemes, making them suitable for various complex operating conditions and with a wide range of applications.
Company profile We offer integrated solutions from embryo casting to complete machine with short lead time and controlled quality.
Main product
workshop

exhibition

Certification certificate
Cooperative brand
APPLICATION AREA
Coal chemical Industry,petroleum and petrochemical Industry,natural gas chemical Industry,fine chemical Industry,etc
Chemical fiber, desulfurization and denitration, etc
Thermal powerthermal power generation,biomass power generation,etc
Mining development,nonferrous metal smelting,Iron and steel metallurgyetc
Environmental protection,wastewater treatment,evaporation and concentration,MVR,etc
Ocean engineering,etc.
New energy, lithlum battery Industry, etc
PACKAGING & TRANSPORTATION
WHY CHOOSE US?
5 DECADES
Established in 1977, long history of pump making brings us rich experience, making us a professional pump manufaturer and ranking us as a famous pump factory in China.
500+ STAFFS
Well trained and professional engineers and workers guarantees the in time delivery and offers professional pump solutions to our clients.
100000m2 WORKSHOPS
Large and modernized workshops and facilities enables the efficient and strict QA&QC procedures and therefore assures the qualified products.
20+ BRANCHES
Established 20+ branches offices and subsidiaries throughout China, they offer closer and in time services to our clients. And our overseas customers are from different places of the world.
3000+ CLIENTS
Own more than 3000 clients both in China and overseas, which is an approval of our product quality and a praise of our service.
20+ PATENTS
Gained more than 20 patents, which is a strong proof of the ability of R&D and a backup of product quality.
FAQ
Q: How long is your factory history?
A: Our factory was established in 1977.
Q: How many staffs does your factory have?
A: We have around 500 staffs.
Q: What international certificates does your factory have?
A: We have API, CE, ISO9001...
Q: Does your factory have foundry for yourself?
A: We have our own foundry in our factory.
Q: What after sales service your factory can provide?
A: Generally, most of the issues can be solved by free guidance of video calls. But paid site service is also available.
Q: What is your product warranty?
A: 12 months since commissioning or 18 months after shipment,whichever is earlier.
Q: What is your factory's annual output capacity?
A: Around 20,000 pcs of various type of pumps.......
