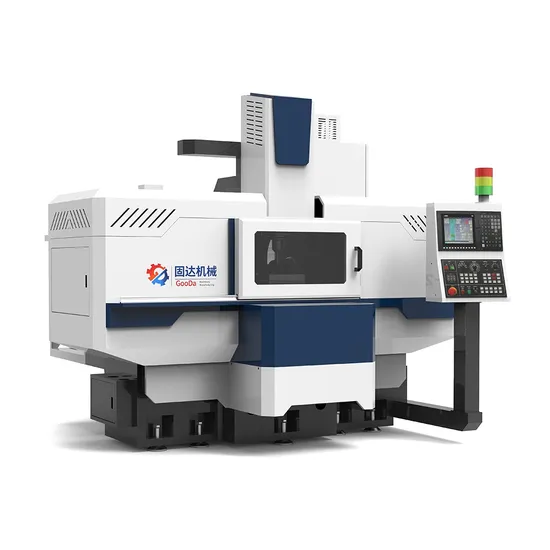

Metalworking CNC Duplex Milling Machine Manufacturer Best CNC Machine Tools Double Spindles Milling Machine

Product Description

Main Features
Automatic milling of all four surfaces in a single setup with GooDa Twin Spindle Milling Machine, minimizing setup time, enhancing efficiency, and reducing operating costs.
-Two surfaces are milled simultaneously with twin cutters;
-The index table automatically rotates 90° after milling 2 surfaces;
-The remaining two surfaces are milled automatically;
-Chamfering can be completed as required while milling faces.

Main Functions
•2-surfaces & 4-surfaces machining system
•Clamping force adjustment function
•Spindle: gear-driven/belt-driven
•CNC System: Mitsubishi/GooDa/FANUC
•Hydraulic clamping system: main & auxiliary hydraulic cylinders
•Chamfering function
•Servo-driven positioning plate
•Gantry frame: auto open & close
Product Parameters

Machine Model	TH-220NCG
Category	Attribute	Value	Unit
Processing capacity	Number of control axes	4	/
	Cutting capacity	2*1.5	mm
	Cutting size	15-220	mm
Worktable	Worktable size	200*200	mm
	Max. load capacity	200	KG
Spindle	Spindle speed	50-1500	rpm
	Spindle motor	5.5	kW
	Cutter diameter	Φ63	mm
X/Y/Z axis	X/Y/Z servo motor	1.3/1.3/1.3	kW
	X/Y/Z maximum rapid feed rate	10000/10000/10000	mm/min
Accuracy	Squareness	0.02	mm/300mm
	Accuracy for dimension	0.02	mm/300mm
Tank capacity	Hydraulic oil tank	50	L
	Lubrication oil tank	4	L
Main power	Power supply	AC3P380V/220V40KVA	V
Size & weight	Machine weight	About 3600	KG
	Machine size (L*W*H)	2700*2360*2100	mm

Applications
Company Profile
Factory Display

Certifications

FAQ
Q1. What is your minimum order quantity and warranty?
A1: MOQ is one set, and the warranty is 12 months.
Q2. What CNC system do you use?
A2: FANUC, SIEMENS, MISTSUBISHI, etc. It depends on your choice.
Q3. When is the delivery time?
A3: For conventional machines, we will deliver them within 30-45 working days after receiving your deposit; For special machines, the delivery time may be longer, and we will provide you with an updated timeline accordingly.
Q4. What is the packaging for the machines?
A4: Packaging: PE bag cover (inside), plywood box, and steel beam frame. Other packing methods are also available.
Q5. How can I select the most suitable machine?
A5: Please let us know your machining requirements or the machine size, and we can recommend the best model for you.
Alternatively, you can choose the exact model yourself. You can also provide us with the product drawings, and we will help you select the most appropriate machine.
Q6. What are your trade terms?
A6: FOB, CFR, CIF, or other terms are all acceptable.
Q7. What are your payment terms?
A7: We accept T/T with a 30% deposit when placing the order and the remaining 70% balance before shipment.
We also accept an irrevocable letter of credit (LC) at sight.
Production will begin once we receive the advance payment. When the machine is ready, we will send you pictures. After receiving the balance payment, we will proceed with the shipment.
Q8: Are you a manufacturer or a trading company?
A8: We are a combined manufacturing and trading company, specializing in the innovative development and production of machine tools, with extensive experience in global exports. We warmly welcome you to visit our factory.
Q9: Can you provide OEM services?
A9: Absolutely. We are happy to create a customized plan based on your requirements and offer the best service to meet your needs.
Q10: How can we receive training for the machines?
A10: You can send your team to our factory for free training, or we can arrange for one of our engineers to travel to your location for on-site training.
