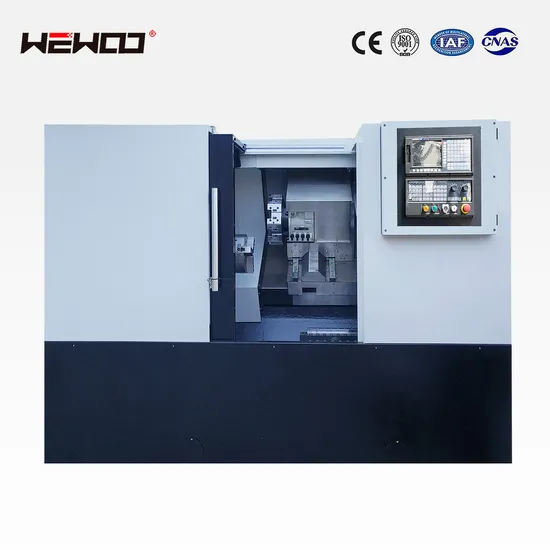

CNC Slant Bed Lathe Machine Tck50 Swing Over Bed: 500mm/Woring Length: 500mm/8 Inch Chuck 12 Station Servo Tower Horizontal Turning Center with Tailstock

Product Description

Vertical automatic CNC machine tools Tck500 China Slant Bed CNC Lathe Machine Price
Product Description
Guarantee of Quality
The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the WEWOO MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance.
Laser Interferometer Testing Equipment
Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the WEWOO MACHINE.
1.This machine tool can process disc/ring parts, turn threads, arcs, cones, and the inner and outer surfaces of rotating bodies, and perform efficient, large-scale, and high-precision processing on rotating body parts. 2.As a universal machine tool, it is particularly suitable for efficient, large-scale, and high-precision processing of rotating parts in industries such as automobiles, motors, bearings, and hydraulic systems 3.The HT300 integrated casting bed has high tensile and seismic resistance. 4. Compact structural design with small footprint, saving land costs. 5. Hard rail tailstock reduces the reaction force of the workpiece and ensures the stability of the processed workpiece. 6. Using an 11KW spindle motor, the single tool cutting amount can reach 5mm. 7. This bed adopts a unit type spindle, which can achieve an accuracy of 0.003-0.005 compared to mechanical spindles. 8.Hydraulic locking is suitable for long axis machining
Product Parameters
SPECIFICATIONS

SPECIFICATIONS	Units	TCK400	TCK500		TCK600
Swing over bed	mm	490	500		650
Swing over cross slide	mm	300	380		630
Distance between centers	mm	500/1000/1500/ 2000/3000	500/1000/1500/ 2000/3000		1000/1500/2000/3000
Guideway width	°	45	45		45
Spindle bore	mm	82	82		105
Spindle speed steps	-	Stepless	Stepless		Stepless
Spindle speed range	rpm	30-3000	35-3000		50-3500
Chuck	in	10'' Hydraulic chuck	10'' Hydraulic chuck		15'' Hydraulic chuck
Turret/tool post	-	Hydraulic turret 8position	Hydraulic turret 8position		Hydraulic turret 12position
Tool shank size	mm	25 x 25	25 x 25		32 x 32
Boring tool holder size	mm	φ40	φ40		φ50
X axis travel	mm	300	300		335
Z axis travel	mm	500/1000/1500/ 2000/3000	500/1000/1500/ 2000/3000		1000/1500/2000/3000
X axis rapid traverse	mm/min	10000 Linear guideway	10000 Linear guideway		4000 Hard	10000 Linear
Z axis rapid traverse	mm/min	15000 Linear guideway	15000 Linear guideway		6000 Hard	15000 Linear
Tailstock quill diameter	mm	φ52	φ75		φ130
Tailstock quill taper	-	MT4	MT5		MT5
Tailstock quill travel	mm	60	150		150
Main spindle motor	kw	15	15		15
Coolant pump motor	kw	0.37	0.37		0.37
Weight for 500	kg	5500	6000		6500
Weight for 1000	kg	6000	6500		7000
Weight for 1500	kg	6500	7000		7500
Weight for 2000	kg	7000	7500		8000
Weight for 3000	kg	8000	8500		9000
Dimension for 500	mm	4350x1800x1800	4350x1800x1800		-
Dimension for 1000	mm	4850x1800x1800	4850x1800x1800		4850x2050x2300
Dimension for 1500	mm	5350x1800x1800	5350x1800x1800		5350x2050x2300
Dimension for 2000	mm	5850x1800x1800	5850x1800x1800		5850x2050x2300
Dimension for 3000	mm	6850x1800x1800	6850x1800x1800		6850x2050x2300

Detailed Photos
COLLET/CHUCK
Standard with spring collet or hydraulicchuck, suitable for small workpiece.
TOOL POST/TURRET
Standard with 4 pcs gang type tool
post,4/6/8 station turret ar
TAIWAN LINEAR RAIL&
BALL SCREW
Taiwan linear rail & ball screwwith high precision and speed.

SPINDLE UNIT
Taiwan brand spindle unit
with high speed
MACHINE STRUCTURE
1.Integrated casting bed body, resistant to tension and earthquake resistance.
2.30 ° inclined bed for more convenient chip removal.
CNC CONTROLSYSTEM
Taiwan precision lead screw. Standard :GSK ,
Optional :SiemensFanuc,Syntec, Mitsubishi and others.

Company Profile

FAQ

1:How can I choose the most suitable machines ?

A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .

You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?

A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?

A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?

A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?

A : T/T ,30% initial payment when order ,70% balance payment before shipment ;

Irrevocable LC at sight .

6: What's the MOQ?

A: 1 set .(Only some low cost machines will be more than 1 set )
