Small Size Metal Cutting Machine Tool Vmc Machine CNC Vertical Machining Center

Product Description

Main Features
The small to medium-sized VMC can provide single-setup complete part machining such as milling, drilling, boring, tapping, and thread milling.
This machine tool is suitable for small to medium batch processing of complex parts such as small and medium-sized cabinets, plates, disks, valves, housings, molds, etc.
Main Functions
-X/Y two axis linear guideway,Z axis box-guideway.
-High rigidity, high precision, high efficiency of heavy cutting under the rapid operation.
Perfect technological process to ensure the accuracy and stability of the machines:
HT-300 casting after secondary heat treatment(annealing)
Spindle runout accuracy: Within 0.01mm tolerance over a length of 300mm to ensure the accuracy and perpendicularity of the spindle.
Scraping technics
Using a collimator to test the straightness of the guide rail.
Our team of experts is ready to help you find the machine most suitable for your processing needs. Get Expert Assistance Now! Examples of Processed Parts
Product Parameters

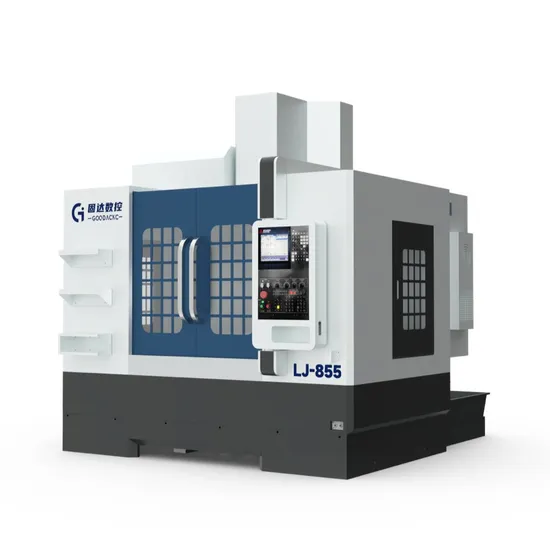

Model	LJ-855
Category	Attribute	Value	Unit
Travel	X-axis travel	800	mm
	Y-axis travel	500	mm
	Z-axis travel	500	mm
Worktable	Distance from spindle nose to table	110-660	mm
	Max. load capacity	500	KG
	T-slot	5-18-90	mm
	size	800*500	mm
Spindle	Tool holder specifications	BT40-φ150	/
	Spindle speed	6000	rpm
	Drive type	Belt type	/
Tool magazine	ATC capacity	24	T
Power requirement	Rated voltage	AC380V±10%	V
	Total power	20	KW
	Air pressure	0.6-0.7	Mpa
Size & weight	Machine space	2650*2560*2830	mm
	Machine weight	5	T

Quality Control
Roughness measurement of table surface using a roughness tester.
Spindle dynamic balancing test ensures processing accuracy.
Spindle pull force testing to measure spindle tension.
All machines must pass coordinate measuring machine (CMM) inspection before leaving the factory.
Company Profile
Factory Display

Certifications

FAQ
Q1. What is your minimum order quantity and warranty?
A1: MOQ is one set, and the warranty is 12 months.
Q2. What CNC system do you use?
A2: FANUC, SIEMENS, MISTSUBISHI, etc. It depends on your choice.
Q3. When is the delivery time?
A3: For conventional machines, we will deliver them within 30-45 working days after receiving your deposit; For special machines, the delivery time may be longer, and we will provide you with an updated timeline accordingly.
Q4. What is the packaging for the machines?
A4: Packaging: PE bag cover (inside), plywood box, and steel beam frame. Other packing methods are also available.
Q5. How can I select the most suitable machine?
A5: Please let us know your machining requirements or the machine size, and we can recommend the best model for you.
Alternatively, you can choose the exact model yourself. You can also provide us with the product drawings, and we will help you select the most appropriate machine.
Q6. What are your trade terms?
A6: FOB, CFR, CIF, or other terms are all acceptable.
Q7. What are your payment terms?
A7: We accept T/T with a 30% deposit when placing the order and the remaining 70% balance before shipment.
We also accept an irrevocable letter of credit (LC) at sight.
Production will begin once we receive the advance payment. When the machine is ready, we will send you pictures. After receiving the balance payment, we will proceed with the shipment.
Q8: Are you a manufacturer or a trading company?
A8: We are a combined manufacturing and trading company, specializing in the innovative development and production of machine tools, with extensive experience in global exports. We warmly welcome you to visit our factory.
Q9: Can you provide OEM services?
A9: Absolutely. We are happy to create a customized plan based on your requirements and offer the best service to meet your needs.
Q10: How can we receive training for the machines?
A10: You can send your team to our factory for free training, or we can arrange for one of our engineers to travel to your location for on-site training.
