99.9% Purity Seed Fine Cleaner of Sesame Sunflower Grain Beans Soybean Ryegrass Cleaning Clean Wheat Corn Maize Barley Oats Sunflowerseeds Machine 5X-10

Product Description

99.9% Purity Fine Cleaner Best Sesame Seed Grain Beans Soybean Cleaner Fine Seed Cleaning Machine Manufacturer 5X-10
Product Description
Introduction and Function

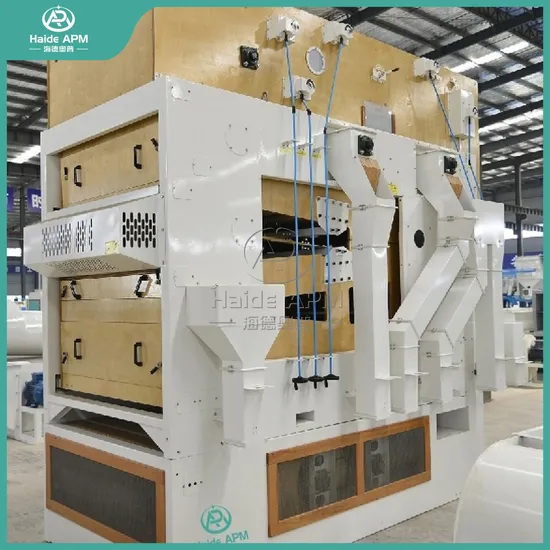

The 5X Fine seed cleaner can be used for pre-cleaning and intensive cleaning. Excellent cleaning and grading function is accomplished by variable screen configuration, pre and aft suction system, and airlifting blowers at the bottom. Closed, bolted and painted steel construction ensures a long service life and safe operation.
To remove big, light, small impurities, dust, and part of broken seeds.
The excellent cleaning effect is accomplished by reasonable screen size, good self-cleaning screens, pre-and after suction system, and airlifting blowers at the bottom. Closed, bolted and painted steel construction ensures a long service life and safe operation.
Detailed Photos
Product Parameters

Model		5X-10	5X-5
Rated Capacity		10 t/h	5 t/h
Overall Dimension (L×W×H)		3790×1940×4060 mm	3200×1920×3600 mm
Total Weight		3600 kg	3250 kg
Total Air Inflow		12520 m3	8200 m3
Power	Top Air Blower (Optional)	4-79N0-5A, 11kw	4-72N0-4.5A, 7.5 kW
	Main machine total Power	6.7kW	6.7 kW
Screen	Screen Type	Pierced Screen	Pierced Screen
	Screen Dimension (L×W)	800×1250 mm	800×1250 mm
	Frequency	300(80~400) /min	300(80~400) /min
	Amplitude	30 mm	30 mm
	Layers and Number	5 layers,15 pieces	4 layers, 7 pieces

Features and Advantages
1. Multi-layer screens are equipped in opposite directions for good impurity cleaning performance.
2. Upper and lower screen decks are dynamically balanced in opposite directions to improve the stable running of the machine.
3. Easily interchangeable screens are flexible for different processing requirements.
4. Positive-negative pressure blower systems are equipped at the top and bottom, twice removing light impurities and incomplete seeds.
5. Screen frames, main ball trays, and feeder parts are made of high-quality wood, with good sealing and vibration absorption performance with low noise.
6. Wide adjustable range realizes fine cleaning process easily.
7. Integral steel frame rubber ball tray for easy screen cleaning and processing material changes.
8. A safety guard is equipped for every moving part to ensure safe operation.
Box-type screen body structure efficiently reduces dust content in the workshop.
Product Details
Company Profile
FAQ
Q1: Are you a factory or trading company?
A1: We are a professional manufacturer of seed processing machinery and also an international trading company
Q2: Can we visit the factory?
A2: Sure, our factory is in Hebei Province, very close to Beijing, You can contact our business manager, and we will arrange the pick-up service.
Q3: I want more machines, how can I get the latest catalog for reference?
A3: You can contact us, and we will send you the latest catalog.
Q4: How to ensure the quality.
A4: Before each device is shipped, our engineers will debug the device to the best operating condition to ensure the customer's use effect. We will provide commonly used spare parts, and after-sales engineers will provide technical solutions for machine failures in time.
Q5: why should you buy from us not from other suppliers?
A5: We will even design suitable and trustworthy machines for our customers according to different requests. We continuously devote ourselves to supplying intelligent, practical machinery and completed technical services to our customers.
You only need to provide:
1. Raw materials
2. Raw material purity
3. The original impurity content of the material
4. Production demand
5. Purity requirements for finished materials
6. Plant layout or size
We will provide you with a perfect solution.
Q6: What are your payment terms for new customers?
A6: A T/T, L/C, Money Gram, West Union, Paypal etc
