Multi-Functional Indoor Gas Detector, Co No2 So2 O3 Pm2.5 Pm10 Detection Alarm Temperature and Humidity Detector

Product Description

introduce

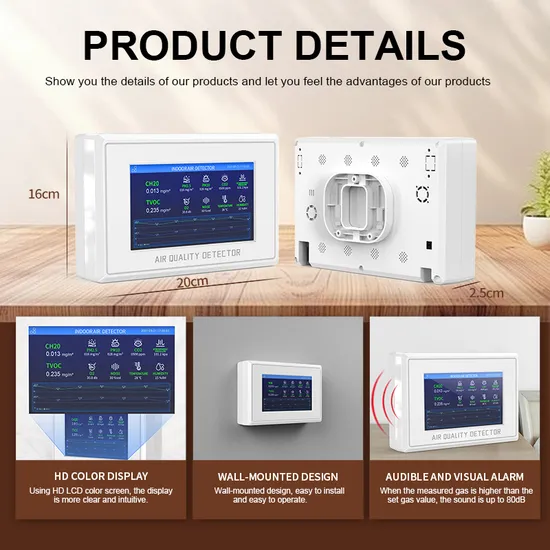

The YF-IAQN-V1 detector is an indoor air quality monitoring device that uses high-precision sensors with fast response speed and high sensitivity. The instrument adopts a 7-inch TFT industrial grade Android display screen, which is easy to operate, and voice can be set or customized. Sensors can be configured arbitrarily, and sales personnel can also be contacted for selection. The detection types that the device can choose from include: temperature, humidity, atmospheric pressure, PM2.5, PM10, PM100, carbon dioxide, carbon monoxide, formaldehyde, TVOC, noise, oxygen, nitrogen dioxide, sulfur dioxide, ozone, toluene, xylene, and more than 100 other gases.
Product Features
Modular structure, easy maintenance, simple wiring and installation
Intelligent sensor platform, plug and play, no need for on-site calibration
High precision brand sensors with fast response, strong anti-interference ability, and long lifespan
High quality cast aluminum shell, meeting explosion-proof, waterproof and dustproof requirements, can be used with confidence
Can be used in networking with column alarm hosts, matching each point and combining points
Plug and unplug air chamber module, no need to disassemble the whole machine, easy to maintain and replace sensors
Optional IoT module, easy to achieve remote online alarm, data query and other functions
Equipped with a 7-inch industrial Android display screen and capacitive touch operation
Can be connected to WIFI, Bluetooth or 4G network output
It can output RS485 using MODBUS protocol, and can also be customized according to customers
Alarm values can be set, with audible alarms
Voice can be set up and customized according to customer requirements to contact sales personnel Product Parameters

Power input:	12-24V or 110-250VAC	Gas types:	temperature, humidity, atmospheric pressure, noise, carbon dioxide, PM2.5, PM10, ethylene oxide, hydrogen peroxide, formaldehyde, chlorine gas, sulfur dioxide, etc;
Working power:	1W
Sensor type:	electrochemical, resistive, or PID;	Working humidity:	0~90% RH (no condensation)
Sampling method:	diffusion;	Working temperature:	-20~60 degrees;
Accuracy:	≤± 3% FS;	Communication method:	RS485 or WIFI or 4G
Resolution:	0.001;	Gas range:	Temperature: -30-55 degrees Celsius Humidity: 0-100% Noise: 30-130db CO2:0-5000PPM PM2.5:0-1000ug/m3 PM10:0-2000ug/m3 Ethylene oxide: 0-10ppm H2O2:0-10ppm Formaldehyde: 0-10ppm Chlorine gas: 0-10ppm Sulfur dioxide; 0-10ppm CO:0-20ppm so2:0-1ppm O3:0-1PPM NO2:0-1PPM TVOC:0-10PPM Contact sales for gas type confirmation, support customization, OEM
Repeatability:	≤± 2% FS;
Zero drift:	≤± 2% FS/6h;
Span drift:	≤± 5% FS/6h;
Response time:	T90 ≤ 3 seconds;
