Dafon High Quality Multi Blade Bridge Block Cutter for Stone/Granite/Marble

Product Description

Product Description

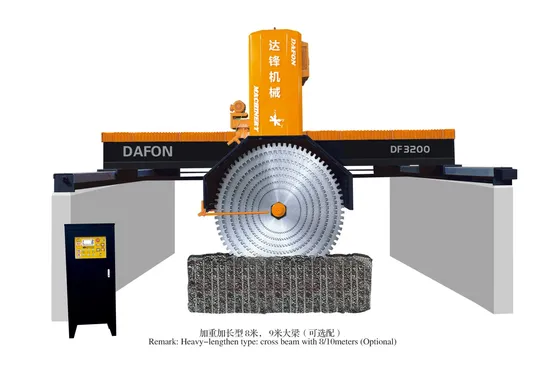

Bridge Block Cutting Machine for Marble Granite The bridge block cutting machine for granite is used in natural stone processing enterprises. The block cutter is designed for vertical cutting of the stone block into one or more slabs.Block cutting has two types two choose: vertical and hydraulic.
The rotation occurs so that the table for the block is not needed (which does not supply with the machine, are available only on request). Version without a table.

Features:

The bridge cutting machine is mainly for granite and marble, it adopts multidisc and PLC programmable control and man-machine interface, combined with a super-precision rotary encoder for slicing, uses a frequency converter to control left-right feeding, and adjusts the speed according to the stone material. It adopts a hydraulic lifting system and forward-backward slicing adopts high-precision screw nut driving, automatic slicing, and main spare parts adopt imported good-quality materials. The block can be placed on the ground directly, saving the cost of trolley and maintenance. It is especially suitable for cutting high-value granite and marble block because of its high-efficiency cutting rate, high precision slicing, flatness, stability, and easy operation.

Technical Parameters

main motor power	37-45kw
total motor power	40-48kw
beam size	500*600*7500mm
blade size	1600-2500mm
max vertical stroke	1100mm
max processing length	4000mm
max processing width	2200mm
water consumption	8.5m³/h
machine size and weight	7800*4500*6500mm, 12T

We provide customization products please contact our sales with detailed requirements, and we will manufacture machines accordingly:
Special customization size:
1.Crossbeam length: 6500-10500mm
2.Side beam length:4500-8000mm

Machine Details

Blade: two ways of blade combination
1. Big-medium-small combination
2. Big-small combination
Can be customized according to the actual needs of customers

Production Process

1. Customer needs to prepare two sides foundation first with the drawing provided by us
2. Install machine and blades
3. Machine cut
4. Take down the slab from blocks one by one, we can make a mold to support the slab, the machine can cut directly to the end and the slab will not fall apart
5. Trolley is optional according to customers' requirement

Application Show

Company Profile

Quanzhou Dafon Machinery Co., Ltd., located in Shuitou Town, is a professional stone machinery enterprise integrating design, manufacturing, and sales. Mainly produce curbstone assembly line equipment, Infrared bridge cutter, automatic edge cutting machine, Infrared middle bridge cutter, single arm block cutter, bridge block cutter, mining machine, and other types of stone machinery.

Our Exhibition

After Sales Service

We provide skilled and rich experience technicians for installation and after-sale service.

Pre-Sales Service * Inquiry and consulting support. * Configure the best machine line according to customer condition * View our Factory.

After-Sales Service * Training how to install the machine, training how to use the machine. * Engineers available to service machinery overseas. * Lifetime technology maintenance in free and spare parts supply. Related Products

Packaging & Shipping

The machine will be consolidated tightly and safely within the container and delivered by sea or railway, we offer fast delivery and prompt reaction.

FAQ:

Q: How do I install and operate the machine, after receiving it?
A: For simple machines, we will provide sufficient installation, operation, and maintenance instructions, and videos, which will make the whole thing as simple as possible for users. For high-tech machines, our engineers can fly abroad to help you install & debug the machine, and teach you how to operate and maintain the machine properly in the future.

Q: Manufacturer Profiles
A: We are the Top 10 stone cutting machine manufacturer with ISO & CE certificates since 1985.

Q: We own 70% China market share in the special shape stone cutting machine series.
A: We are a company which is especially for producing stone machines for exporting.

Q: Quality Control
A: We have our own experienced QC. Our machine will be strictly inspected. We will provide a Testing Video for each machine before shipping out if required by the customer.

Q: Delivery time
A: Based on order quantity, normally three weeks against payment.
