Diamond Drilling Core Orientation Tool
| US$15,000.00-30,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CRT-2
Trademark
BOHWA
Origin
China
HS Code
9031809090
Production Capacity
10 Sets/Month
Product Description
Core orientaion tool for diamond core drilling About the CRT-2 core sample orientation instrument2 Logging probes do the core sample orientation, and mark the line, it can be used with NQ, HQ, and PQ borehole size wireline core drilling core orientation purpose;
Specifications
| DIMENSIONS | |
| Kit | |
| Length x Width x Height | 690 x 500 x 210 mm |
| Weight | 21kg |
| Downhole Instrument | |
| Outside Diameter | 55mm |
| Length | 380mm |
| Weight | 5kg |
| Handheld | |
| Length x Width x Height | 76 x 155 x 14 mm |
| Weight | 0.24kg |
| ACCURACY | |
| Range | 0°to ±85°dip |
| Roll Accuracy | 5°RMS at ±85° |
| BATTERY | |
| Downhole Instrument | User replaceable, non-rechargeable lithium |
| Normal Use | More than 3 months |
| Handheld | Rechargeable lithium |
| Normal Use | 8 hours per full charge (sleep mode may save power and increase the operation time) |

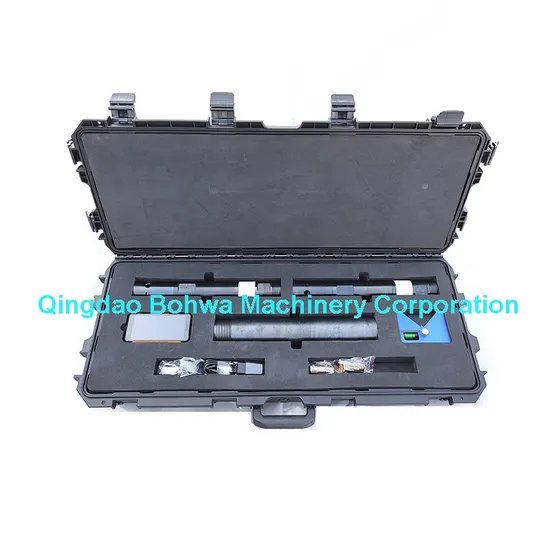

Product and working Pictures
