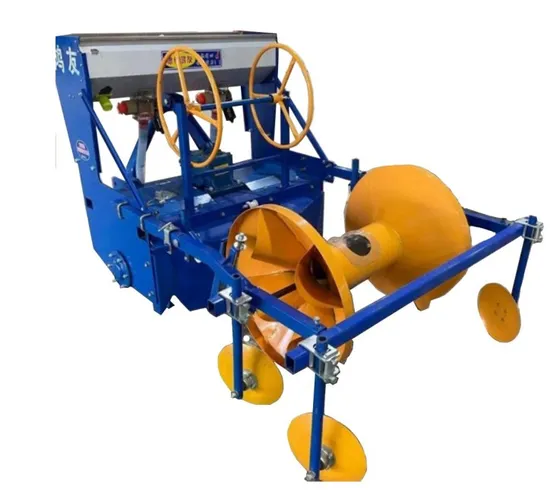

Drum Type Furrowing and Mulching Machine Working Width 1100mm 1GM-110

Product Description

Product Description
Ridge Laminating Machine
Ridge laminating machine is a kind of mechanical equipment widely used in agricultural production. It can efficiently complete ridge-forming and film-covering operations, greatly improving the operation efficiency of farmland. This machine is usually composed of a rotary tillage and soil-breaking part, a ridge-forming and shaping part, and a film-covering and soil-pressing part. The rotary tillage and soil-breaking part turns up and breaks the soil through a disc plow and a rotary tillage blade shaft, the ridge-forming part adjusts the height and compaction of the ridge through a drag plate and a pressure roller, and the film-covering and soil-pressing part is responsible for unfolding the ground film and fixing it on the ridge surface.
The working principle of the ridging and film-covering machine is to use the power output shaft (PTO) of the tractor to drive the machine, and complete the rotary tillage, ridging and film-covering operations through the cooperation of the gearbox and the blade shaft.
This machine is widely used in modern agriculture. It can not only reduce labor intensity but also realize the joint operation of multiple functions, such as fertilization, sowing, laying drip irrigation belts, etc.
Product Parameters

1GM-110 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	Structural Style	Three Point Suspension	11	Ridge Formation/ Number Of Rows	Single Row
2	Working Size (length*width*height)	1900*1460*1300mm	12	Ridge Width	420mm
3	Transport dimensions (length*width*height)	1000*1460*1550mm	13	Ridge Bottom Width	800mm
4	Overall Weight	300kg	14	Ridge Height	300mm
5	Working Width	1100mm	15	Applicable Film Width	1.1-1.2m
6	Operation Efficiency	Estimated 0.14 hectares per hour	16	Rotary Blade Model	IT245
7	Supporting Power/ Machine Horsepower	≥40Hp	17	Number Of Blades	12 Pairs
8	Matched To The Power Output Shaft Speed	540r/min	18	Rotary Blade Arrangement	Opposite Spiral Installation
9	Matching Hanging Width	620mm	19	Depth limiting mechanism type	Central Link
10	Fertilization Box Volume	0.1m³	20
Note:The values in the specification table are theoretical values,please refer to actual values.

Detailed Photos
IMPROVE OPERATION EFFICIENCY
The ridging and film covering machine can complete ridging and film covering at the same time, reducing the time and labor input of traditional manual or step-by-step mechanical operations, greatly improving the efficiency of agricultural production, and is especially suitable for operations on large areas of farmland.
IMPROVE SOIL CONDITIONS
During the ridging process, the machine can perform rotary tillage and soil crushing to make the soil looser, and increase the air permeability and water permeability of the soil, which is conducive to the growth and development of crop roots and provides a better growth environment for crops.
SAVE RESOURCES AND PROTECT THE ENVIRONMENT
The film-covering operation can effectively reduce the evaporation of soil moisture and improve the efficiency of water use, especially in arid areas, which can significantly save irrigation water. In addition, film covering can also reduce weed growth, reduce dependence on pesticides and fertilizers, and thus reduce agricultural non-point source pollution.
MULTIFUNCTIONAL INTEGRATION
The modern ridging and film covering machine can not only complete ridging and film covering, but also be equipped with multiple functions such as fertilization, sowing, and laying drip irrigation belts as needed, so as to realize the joint operation of multiple operations, reduce the number of mechanical entry times, and reduce the compaction of the soil.
STRONG ADAPTABILITY
The ridging and film covering machine is suitable for a variety of terrains and soil types, and can effectively complete operations in both plains and hilly areas. At the same time, the machine's parameters can be flexibly adjusted according to different crops and agronomic requirements, and it has strong adaptability.

FAQ
Q1. What are your terms of payment?
A1:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q2. What are your terms of delivery?
A2:EXW, FOB, CFR, CIF. Which delivery terms depend on your choice?

Q3. How about your delivery time?
A3: Generally, it will take 30 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Most time we have some in stock.

Q4. Are you interested in a dealership with a local company?
A4: Of course, we are quite interested in this business. We'd like to cooperate with some local partners to sell more HONGYOU machines in the local market and supply better service.


Q5. Do you test all your goods before delivery?
A5: Yes, we have 100% test before delivery and we can email you the test video if you need it.

Q6.Can you customize the machine for me?
A6: Yes, we can customize it according to the customer's requirements.
