Skz1052D Testing Equipment Simultaneous Tga Isothermal Oit DSC Differential Scanning Analysis Instrument Machine Analyzer
Basic Info.
Model NO.
SKZ1052D
Type
Differential Scanning Calorimeter
Display
Digital
Control
Computer Control
Weight
0-100Kg
Power Source
AC220V
Temperature Range
-35-550c
Temperature Resolution
0.1c
Heating Rate
1-40c /Min
DSC Range
600MW
Cooling Rate
1 -20c / Min
Temperature Fluctuations
0.1c
Temperature Repeatability
0.1c
DSC Noise
0.01um
DSC Resolution
0.01um
DSC Accuracy
0.01MW
Curve Scanning
Rising Scan, Cooling Scan
Data Interface
Standard USB Connector
Software
Operating Software
Transport Package
Wooden Box Package
Specification
68*62*55 42kg
Trademark
SKZ
Origin
China
HS Code
9027809990
Production Capacity
500
Packaging & Delivery
Package Size
68.00cm * 62.00cm * 55.00cm
Package Gross Weight
42.000kg
Product Description

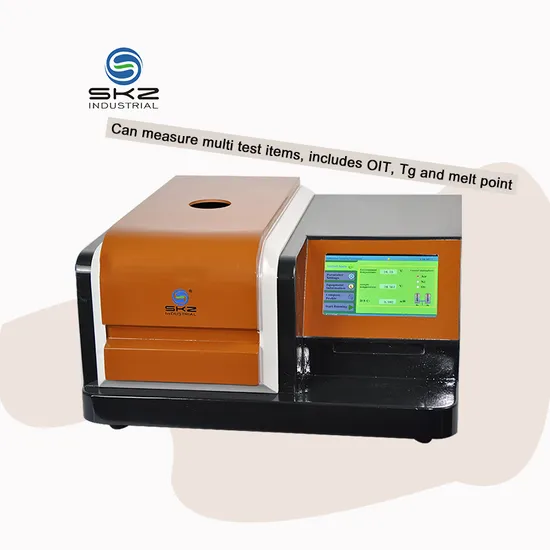

Product DescriptionSkz1052D Testing Equipment Simultaneous Tga Isothermal Oit DSC Differential Scanning Analysis Instrument Machine Analyzer
DSC is designed to determine the inner heat transition relating to temperature and heat flow, it is widely used in the field of polymer development, performance testing & quality control. DSC research and development includes the following field: glass transition temperature, melting point, cold crystallization, crystallization, phase transition, oxidation induction time (OIT).
Standards:
ISO/TR10837:1991, ASTM D3895-1998, ASTM E 967, ASTM E 968, ASTM E 793, ASTM D 3895, ASTM D 3417, ASTM D 3418, ISO 11357-6
Main Features:
1. New designed oven structure ensures high resolution and good stability of base line
2. Air flow meter may control the air flow rate accurately; the test data can be recorded
3. It is bilateral control, may be controlled by both main frame and software.
Technical parameters:
| DSC range | 0~±500mW |
| Temperature range | -35~550ºC Compressor cooling |
| Heating rate | 1 ~ 40 ºC / min |
| Cooling rate | 1 ~ 20 ºC / min above room temperature, 1-10ºC / min, below room temperature. |
| Temperature resolution | 0.1 ºC |
| Temperature fluctuations | ±0.1ºC |
| Temperature repeatability | ±0.1ºC |
| DSC noise | 0.01μW |
| DSC resolution | 0.01μW |
| DSC accuracy | 0.1 u W |
| DSC sensitivity | 0.1 u W |
| Control Mode | Rising temperature, constant temperature(full automatic) |
| Curve scanning | Rising scan, cooling scan |
| Gas flow control | Embedded digital flow meter & Software control, automatic changing |
| Display | 24 bit 7 inches LCD touch screen display |
| Data interface | standard USB connector |
| Parameter standard | With standard material, with calibration function, the user may correct temperature and heat enthalpy |
