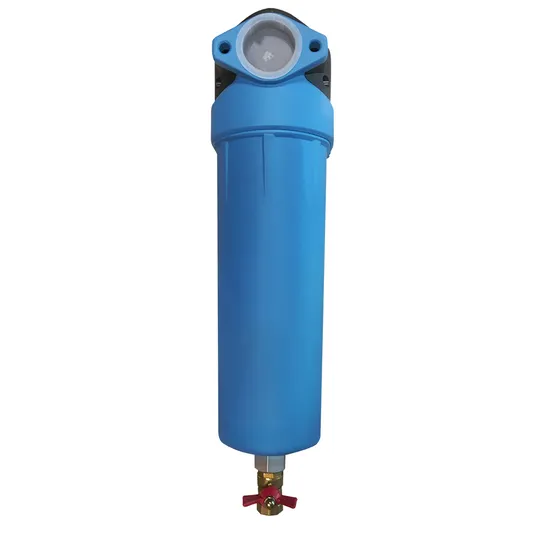

ATS Line Air Filter Air Compressor Auto Spare Parts for Compressor System in Industry-F0020-P
| US$46.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
F0020-P
Product Name
Line Air Filter
Filter Type
Dust Removal
Model
F0020-P
Air Capacity
0.57m3/Min
Application
Get Rib of Big Particle, Oil Mist, Condensed Water
Filter Accuracy
3um Particle
Element
0020e-P
Air Connection
R1/2"
Color
Blue
Dimension
95*279mm
Package
Carton
Specification
CE, ISO, GCCA, ASME
Trademark
ATS
Origin
China
HS Code
8414909000
Production Capacity
50000PCS/Month
Packaging & Delivery
Package Size
20.00cm * 20.00cm * 30.00cm
Package Gross Weight
4.000kg
Product Description
Product Description 1.Italian Imports Product2.Small pressure drop, power saving
3.No pull rod design to save intallation space and easy to disassemble
4.Good quality sealing
5.Reliable and stable
6.Reliable auto drainer
TECHNICAL PARAMETER
| ATS line air filter | |||||||
| Model | Thread Connection | Air Capacity | Dimension(mm) | ||||
| m³/min | CFM | A | B | C | D | ||
| F0020 | 1/2" | 0.57 | 21 | 95 | 220 | 197 | 95 |
| F0021 | 3/4" | 0.57 | 21 | 95 | 220 | 197 | 95 |
| F0045 | 1/2" | 1.3 | 45 | 95 | 220 | 197 | 110 |
| F0046 | 3/4" | 1.3 | 45 | 95 | 220 | 197 | 110 |
| F0070 | 3/4" | 2 | 70 | 95 | 280 | 257 | 145 |
| F0100 | 3/4" | 2.8 | 100 | 95 | 280 | 257 | 175 |
| F0125 | 1" | 3.5 | 125 | 125 | 320 | 290 | 185 |
| F0126 | 1-1/2" | 3.5 | 125 | 125 | 320 | 290 | 185 |
| F0180 | 1" | 5.1 | 180 | 125 | 320 | 290 | 185 |
| F0181 | 1-1/2" | 5.1 | 180 | 125 | 320 | 290 | 185 |
| F0265 | 1-1/2" | 7.5 | 265 | 125 | 400 | 370 | 230 |
| F0370 | 1-1/2" | 10.5 | 370 | 125 | 400 | 370 | 270 |
| F0515 | 2" | 14.6 | 515 | 170 | 520 | 478 | 390 |
| F0745 | 2" | 21.1 | 745 | 170 | 700 | 658 | 570 |
| F0900 | 2-1/2" | 25.5 | 900 | 200 | 995 | 938 | 570 |
| F0901 | 3" | 25.5 | 900 | 200 | 995 | 938 | 570 |
| F1060 | 2-1/2" | 30 | 1060 | 200 | 995 | 938 | 630 |
| F1061 | 3" | 30 | 1060 | 200 | 995 | 938 | 630 |
| F1280 | 3" | 36.3 | 1280 | 200 | 995 | 938 | 700 |
| F1650 | 3" | 46.7 | 1650 | 200 | 995 | 938 | 700 |
FAQ
Q1: Are you a manufacturer or trading company?
A1: Linghein is professional screw air compressor factory located in Wuxi, China, Olymtech is Linghein overseas market sales representative.
Q2: Linghein is real member of Atlas-copco group?
A2: Yes, in 2010, Sweden Atlas-copco 100% acquired Linghein.
Q3: Linghein air-end from Atlas-copco?
A3: Yes, Linghein LS/LSV, LOH, LSH and CS series air compressors all use Atlas Copco's air-end.
Q4: What's your delivery time?
A4: about 10-20days after you confirm the order, other voltage pls contact with us.
Q5: How long is your air compressor warranty?
A5: One year for the whole machine since leave our factory.
Q6: What's the payment term?
A6:We accept T/T, LC at sight, Paypal etc.
Also we accept USD, RMB, JPY, EUR, HKD, GBP, CHF, KRW.
Q7: What's the Min. Order requirement?
A7: 1unit
Q8: What service you can support?
A8: We offer after-sales service, custom service, production view service and one-stop service.
