Precision CNC Drilling Machine for Window Frames

Product Description

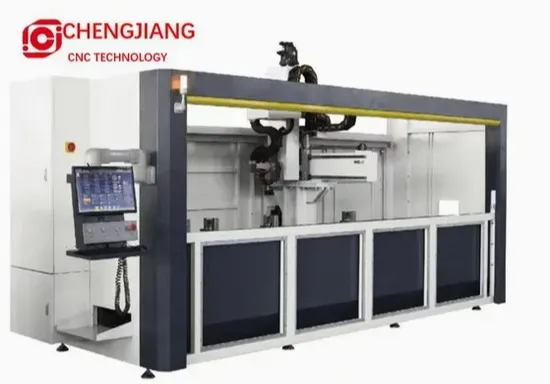

Aluminum Profile Window and Door Four-Axis CNC Drilling Machine

1,Suitable for precise processing of various holes, grooves, water slots, etc., in industrial aluminum profiles, door and window aluminum profiles, or curtain wall aluminum profiles.
2,Four-axis CNC machining system enables intelligent, efficient, and precise three-dimensional processing of complex workpieces.
3,Workpiece fixtures have automatic collision avoidance function for more efficient processing.
4,Equipped with a tool magazine for automatic tool change during processing, allowing for composite processing of different diameters.
5,This machine has 3 controllable CNC axes (X, Y, Z) for higher processing accuracy and efficiency. The spindle motor can rotate to -90°, 0°, and +90° positions, allowing for milling of all holes on three faces in one clamping operation. 6,The machine has high body strength, good rigidity, stable and reliable performance, high working accuracy, aesthetic appearance, and ease of operation. 7,All actions are achieved by servo motors and pneumatic systems. 8,Linear motion bearings are used in the motion pair, resulting in low resistance and high precision. 9,After manually adjusting the fixture positions, the machine automatically completes all processing tasks after loading, ensuring high work efficiency, safety, and reliability. 10,The main components of the machine head are made of cast iron and high-strength aluminum alloy, with a compact and rational structure, ensuring high strength. 11,All three-axis motion pairs use linear guide pairs to guarantee smooth motion of the X, Y, and Z axes. The X-axis utilizes bevel gear rack transmission for power, while the Y and Z axes use ball screw pairs to ensure processing accuracy. 12,Utilizes high-precision linear guide pairs, ball screws, gear racks, and imported servo motors to ensure smooth motion with high positioning and processing accuracy. 13,Equipped with an imported high-speed electric spindle for stable rotation, low noise, and strong cutting capability.
14,Intelligent CNC system and intuitive human-machine interface make operation more convenient and efficient.

Input power supply:	380V/50Hz
Total power:	7.2kW
Spindle power:	5.5kW
Spindle speed:	18,000rpm
Working air pressure:	0.5~0.8MPa
X-axis lateral travel:	3,200mm
X-axis longitudinal travel:	450mm
Z-axis vertical travel:	400mm
X-axis feed rate:	0~60m/min
Y-axis feed rate:	0~15m/min
Z-axis feed rate:	0~15m/min
Spindle motor working position:	- 90°, 0°, +90°
Spindle speed:	0~24,000rpm
Tool holder:	ER25-Ф8mm, Ф10mm, Ф12mm
Number of fixtures:	4
Fixture cylinder stroke:	150mm
Processing range:	160×160×3,200mm
Repeat positioning:	±0.02mm
Surface roughness:	6.3μm
Dimensions:	4,500×1,500×1,950mm
Weight:	Approximately 1,100kg

Pre-Sale Service
Get in touch with us to find the perfect machine for your needs, at no cost to you.
Enjoy bespoke professional designs tailored to each customer's unique requirements, free of charge. After Sale Service Receive round-the-clock technical support via phone, email, or Skype-whenever you need it, we're here for you.
Benefit from a 1-year warranty period, ensuring peace of mind and reliable operation.
Our expert senior engineer is ready to travel abroad to assist with installation, maintenance, and staff training, ensuring seamless operation and efficiency.
