Hydraulic Cup Thermoforming Machine Plastic Cup Making Machine

Product Description

I. Feature & parameter
- The machine adopts hydraulic pressure system to produce products, stable running, small noise, good mold locking ability.
- Electromechanical, gas, hydraulic pressure integration, PLC control, high precision frequency conversion.
- Completely automatic and fast production speed. Different products are available by changing different moulds.
- Adopt imported famous brands of electric and pneumatic fittings, stable running, relia
ble quality and long life.
- The whole machine is compact, one mould has all functions, such as pressure giving, forming, cutting, cooling and finished product blowing.

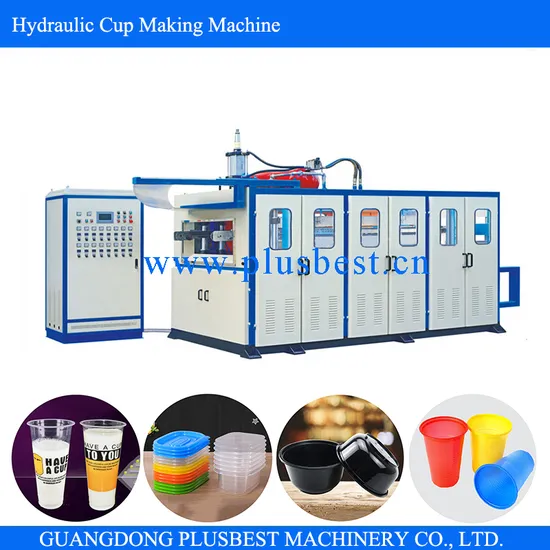

II. Machine photo
III. Technical Data

Mode No.	PBH-660	PBH-700	PBH-720	PBH-730	PBH-750
Available material	PET-PP-PS-PE	PET-PP-PS-PE	PET-PP-PS-PE	PET-PP-PS-PE	PET-PP-PS-PE
Formed area(mm)	660×320	700×350	720×450	730×480	750×500
Formed depth(mm)	120/180	120/180	120/180	120/180	120/180
Speed(cycles/min)	20-35	20-35	20-35	20-35	20-35
Max. sheet width(mm)	660	700	720	730	750
Thickness(mm)	0.3-2.0	0.3-2.0	0.3-2.0	0.3-2.0	0.3-2.0
Total power(kw)	≤45	≤50	≤55	≤65	≤65
Air wastage(Mpa)	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8	0.6-0.8
Water wastage(m³/h)	≤0.5	≤0.5	≤0.5	≤0.6	≤0.6
Dimension(mm)	5500×2300×2400	5800×2500×2600	6200×2800×2600	6200×2800×2600	7200×3000×2600

IV.About Us
PLUSBEST is a professional PLASTIC MACHINERY manufacturer, supplier ,importer and exporter with scientific research, design, production and market ,which is the head office of BENYOU TECHNOLOGY located in SHANTOU CITY OF CHINA.

As the professional manufacturer, we our team have already been specializing in PLASTIC MACHINERY for making PLASTIC SHEET EXTRUDER, PLASTIC THERMOFORMING MACHINE, VACUUM FORMING MACHINE, LASER/OFFSET PRINTING MACHINE, DRINKING STRAW MACHINE, PLASTIC PACKING MACHINE, MOULDS AND AUXILARY etc. They are widely used in multi-industry of food, pharmacy, toys, chemical fertilizer, health care, electronic or hardware and so on for all over the global market.

We PLUSBEST have been enjoying a great reputation, and are going to guide BENYOU TECHNOLOGY to go ahead. Since 2022 overseas business more than 40 countries has been directly co-shared with us in Europe, South America, North America, Oceania, Africa, Middle East and Southeast Asia ,besides more countries will be being increased year by year.

With both skillful export experience and professional equipment knowledge we all PLUSBEST people are always to improve better service and innovating technology support, as well as new products introduction for customers all over the world for bright future.

Warmly welcome home and abroad friends to visit PLUSBEST.
