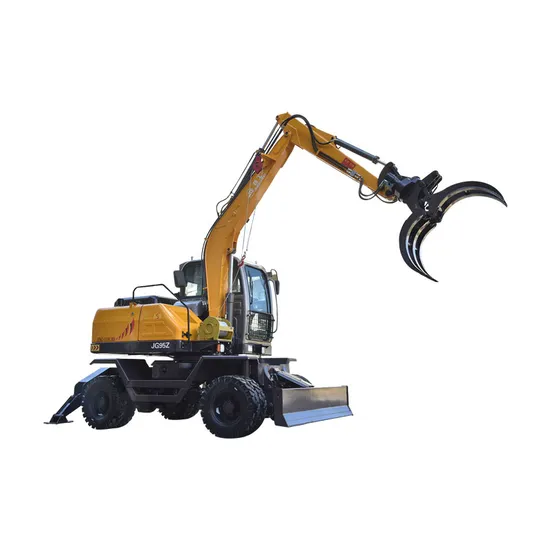

Mobile Material Handling Machines Claw Digger Excavator with Metal Scrap Grab Equipment
| US$29,000.00-32,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
JG95z
Type
Wheel Excavator
Usage
GM Excavator
Bucket
Grab Shovel
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
ISO9001: 2000
Condition
New
Boom Length
4000mm
Arm Length
2000mm
Max Radius of Capture
7000~7500mm
Transport Package
Nude Packing
Specification
6600*2350*2950mm
Trademark
JingGong
Origin
China
HS Code
8429521100
Production Capacity
3000units/ Year
Product Description
Equipped with 62.5KW turbocharged engine, this type of grapple wheel excavator shows excellent performance in
slope climbing, materials loading and so forth. By utilizing a plunger pump, this agricultural excavator enjoys smooth
movement and high working efficiency. The 360° rotary grab makes our wheeled excavator popular with farmers for
loading sugarcanes and timbers.
| SPECIFICATIONS OF JG95Z GRAPPLE EXCAVATOR | ||||||||||
| RANGE OF OPERATION | Boom length | 4000mm | ||||||||
| Arm length | 2000mm | |||||||||
| Max radius of capture | 7000~7500mm | |||||||||
| Max. Opening Width of Grab | 1250mm | |||||||||
| Min. Opening Width of Grab | 80mm | |||||||||
| Max. Radius Grabing Weight | 800kg | |||||||||
| Grapple rotation angle | 360° | |||||||||
| Max dumping height | 4650~5500mm | |||||||||
| Back-end radius of gyration | 1980mm | |||||||||
| DIMENSION | (Length*width*height)Transport Dimensions | 6600*2350*2950mm | ||||||||
| Wheel base | 2400mm | |||||||||
| Track(Front/rear) | 1850mm/1750mm | |||||||||
| Drive axle | Reinforced integral 10Ton Axle | |||||||||
| Ground clearance of counterweight | 1160mm | |||||||||
| Min ground clearance | 200mm | |||||||||
| TECHNICAL PARAMETERS | Angle of rotation | 360° | ||||||||
| Machine weight | 7800kg | |||||||||
| Engine model | YUCHAI | |||||||||
| Rated Power | 65kw | |||||||||
| Rated Speed | 2400r/min | |||||||||
| Hydraulic system working pressure | 21Mpa | |||||||||
| Hydraulic system flow | 150L/min | |||||||||
| Variable piston pump | 71ml/r | |||||||||
| Max Hauling force | 12r/min | |||||||||
| Walking speed | 25km/h | |||||||||
| Grade Climbing ability | 58%/30° | |||||||||
| Tyre model | 8.25-16 | |||||||||
| Revolution Overdrive Pressure | 20Mpa | |||||||||
| Full circle swinging time | 5.5s | |||||||||
| Fqt Fuel Quantity | ≥6L/h | |||||||||
| Hydraulic Tank Capacity | 110L | |||||||||
| Capacity Of The Fuel Tank | 110L | |||||||||
