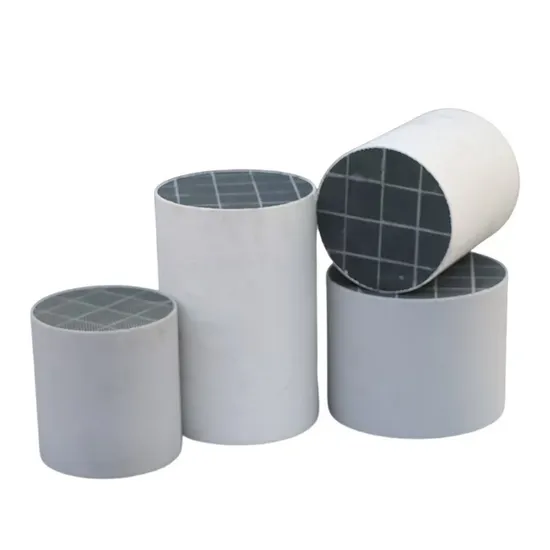

Sic Diesel Particulate Filter Substrate to Capture The Harmful Particulates Such as Soot and Ash
Basic Info.
Model NO.
SIMIS-DPF
Type
Catalytic Converter
Body Material
Steel
Discharge Standard
Euro II
Certification
ISO9001
Noise Source
The Noise of Engine
The Noise of Engine
Mechanical Noise
Automobile Chassis Noise
Transmission Noise
Component
Exhaust Tail Pipe
Main Market
North America
Product Name
Honeycomb Ceramic Diesel Particulate Filter Substr
Material
Cordierite, Sic
Shape
Round, Square
Size
Can Be Customized
Cell Density
100/200/300/350 Cpsi
Application
Diesel Engine Exhaust System
Model
Universal
Emission Standard
Euro 5, Euro 6
Transport Package
Carton or Pallet
Specification
55*37*30cm
Trademark
SIMIS
Origin
China
HS Code
6903900000
Production Capacity
200000pieces/Year
Packaging & Delivery
Package Size
55.00cm * 37.00cm * 30.00cm
Package Gross Weight
1.500kg
Product Description
Product DescriptionCordierite Diesel particulate filter substrateDiesel Particulate Filter (hereinafter called DPF) is designed to remove black smoke (soot, hereinafter called PM) form diesel engine exhaust, making great contribution to clean the exhaust gas from diesel cars while attracting much attention from worldwide car manufacturers.The most effective type is the so called wall-flow filter. Particulate matter is removed from the exhaust by physical filtration using a honeycomb structure similar to an emissions catalyst substrate but with the channels blocked at alternate ends. Our cordierite Diesel particulate filter substrate is made from modified cordierite ( 2MgO-Al2O3-5SiO2 )material. Current our full series has both 100 and 200 CPSI option and size is from 1.0 liters to 44 liters.Product FeaturesFeature:· Low thermal expansion
· High filter specific surface area
· Low pressure drop
· Long-term durability performance
· High soot removal: >95%
· Excellent thermal shock resistance.
DPF InstallationA DPF is installed between an engine and a muffler to remove suspended particulate matter (SPM) from diesel engine exhaust gas.
The working principle of the particulate trap: By alternately blocking both ends of the pores of the honeycomb porous ceramic, the ceramic wall is used to filter and remove PM.
Product Size
| Hole density | Shape | Dimension (mm) | Volume (Liter) |
| 100 CPSI-200CPSI | Round | φ93×153 | 1.0394 |
| φ127×152.4 | 1.9308 | ||
| φ144×150 | 2.4432 | ||
| φ144×152.4 | 2.4823 | ||
| φ150×150 | 2.6511 | ||
| φ144×254 | 4.1372 | ||
| φ190×200 | 5.6713 | ||
| φ190×203 | 5.7556 | ||
| φ228×305 | 12.4542 | ||
| φ240×100 | 4.5245 | ||
| φ240×240 | 10.8588 | ||
| φ240×305 | 13.7997 | ||
| φ260×305 | 16.1954 | ||
| φ267×305 | 17.0792 | ||
| Φ286×267 | 17.1550 | ||
| φ286×305 | 19.5965 | ||
| φ286×355 | 22.8098 | ||
| φ286×381 | 24.4763 | ||
| Φ305×305 | 22.287 | ||
| Φ305×381 | 27.840 | ||
| Φ381×381 | 43.438 | ||
| Oval | 188×103×145 | 2.2055 | |
| 207×101×200 | 3.282 | ||
| Racetrack | 374×270×317 | 27.0537 |
