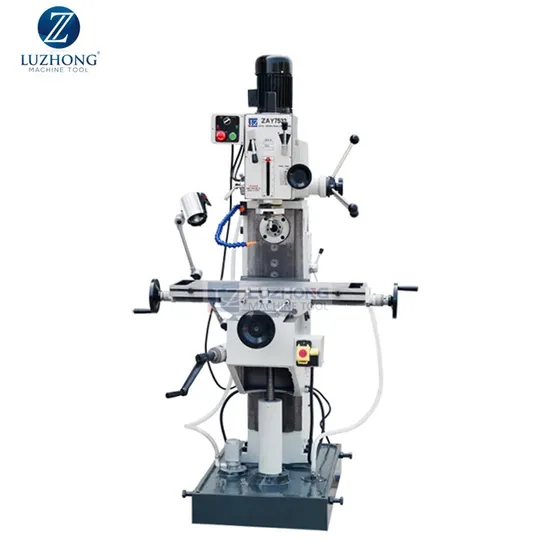

Bench Mini ZAY7550 Vertical Drilling and Milling Machine

Product Description

Bench Mini ZAY7550 Vertical Drilling and Milling Machine
Product Description
The main performance characteristics:
milling head can be moved forward or backward
Vertical milling head can swivel 90 vertically and 360 horizontally.
Adjustable atops on table
Manual quill feed
High tensile casting iron elevative table
Double motor with powerful force
Product Parameters
Product main technical Specifications:

Model	ZAY7532	ZAY7540	ZAY7545	ZAY7550
Max. drilling capacity	32mm	40mm	45mm	50mm
Max. milling capacity (end / face)	25/100mm	32/100mm	32/100mm	32/100mm
Swivel angle of headstock(perpendicular)	± 90°	± 90°	± 90°	± 90°
spindle taper(end/face)	M. T. 3 M. T. 4	M. T. 4	M. T. 4	M. T. 4
Distance from spindle nose to worktable surface	80-480mm	80-480mm	80-480mm	80-480mm
spindle travel	130mm	130mm	130mm	130mm
Beam travel	500mm	500mm	500mm	500mm
step of spindle speed(end/face)	6\12	6\12	6\12	6\12
range of spindle speed(end/face) 50Hz	80-1250 /38-1280 (r/min)	80-1250 /38-1280 (r/min)	80-1250 /38-1280 (r/min)	80-1250 /38-1280 (r/min)
60Hz (4 Poles)	95-1500 /45-1540 (r/min)	95-1500 /45-1540 (r/min)	95-1500 /45-1540 (r/min)	95-1500 /45-1540 (r/min)
Worktable size	800× 240mm	800× 240mm	800× 240mm	1000× 240mm
Forward and afterward travel of worktable	300mm	300mm	300mm	300mm
Left and right travel of worktable	585mm	585mm	585mm	785mm
Vertical travel of worktable	400mm	400mm	400mm	400mm
Min. distance from spindle axis to column	290mm	290mm	290mm	290mm
Power(end/face)	0.75KW(1HP)/1.5KW	1.1KW(1.5HP)/1.5KW	1.5KW(2HP)/1.5KW	1.5KW(2HP) /1.5KW
Voltage/Frequency	As customer' s requirement	As customer' s requirement	As customer' s requirement	As customer' s requirement
Cooling pump power	0.04KW	0.04KW	0.04KW	0.04KW
Net weight/Gross weight	910kg/1010kg	913kg/1013kg	915kg/1015kg	930kg/1030kg
Packing size	1020× 1350× 1850mm	1020× 1350× 1850mm	1020× 1350× 1850mm	1220× 1350× 1850mm
Loading amount	8pcs/20 ' container	8pcs/20 ' container	8pcs/20 ' container	4pcs/20 ' container

Detailed Photos
Company Profile
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
