high precision surface grinding machines M7130 for metal

Product Description

Product Description

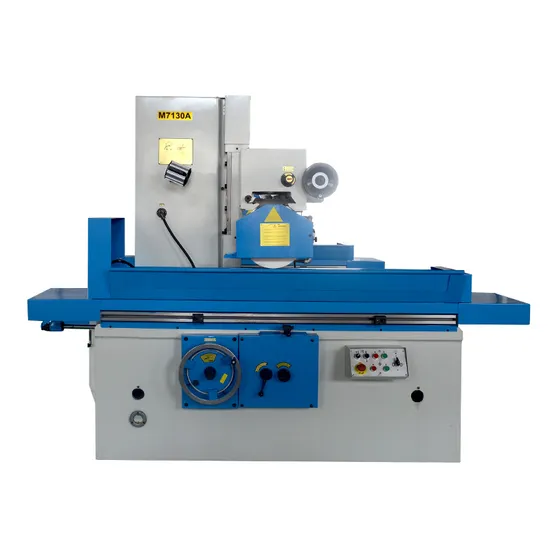

High Precision Surface Grinding Machines M7130 for Metal
Features:
1. The machine is reasonable in structure, good rigidity, beautifulappearance, convenient operation.
2. Using precision plastic guide surface and precision scraping, grinding imported hydraulic transmission, drive by synchronous.
3. Throttle control part and unloading function, can realize the stationstart and stop.
4. Grinding can be all kinds of plane and complex shaped surface,suitable for motor without grinding the feed, according to user
needs with a permanent magnet sucker or electromagnetic sucker.

Model	Unit	M7130
Max. workpiece	mm	1000*320*400
Longitudinal motion stroke(Hydraulic)	mm	1100
Distance from table surface to spindle center	mm	575
Vertical feed hand wheel per movement	mm	0.01
The maximum stroke of transverse motion	mm	450
Horizontal movement speed(stepless)	m/min	0.5-3
Longitudinal velocity(stepless)	m/min	3-30
Spindle speeds	r/min	1440
Wheel size(dia*width*bore)	mm	φ350*40*φ127
Grinding head motor power	kw	7.5
Total motor power	kw	11.5
oil pump motor power	kw	3
Max loading capacity of table	kg	800
Net weight	kg	3800
Surface roughness	μm	Ra0.63
Machine size	mm	2700*1640*2100

Detailed Photos
Company Profile
FAQ
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
