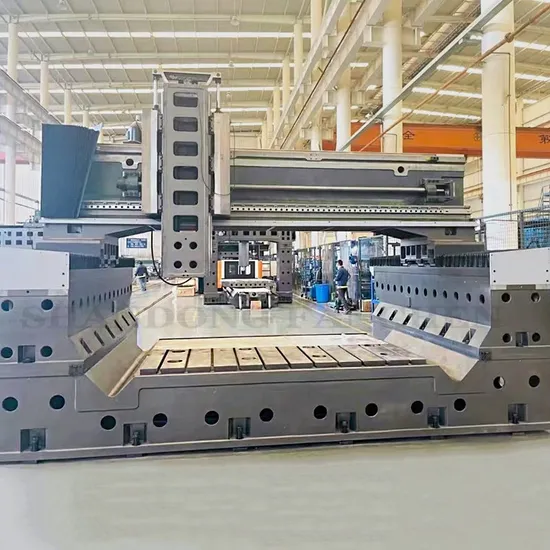

Horizontal Gantry Machine Tool Gmb5018 5025 6018 CNC Drilling and Milling Cutting
| US$149,000.00-899,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
GMB5018
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Performance Classification
Gantry Machining Center
Certification
GS, CE, ISO 9001
Condition
New
Table Size
5000/1800mm
Table T-Slot Dimensions
9/22mm
X-Axis Itinerary
5000mm
Ythe Y-Axis Itinerary
1800mm
Z-Axis Itinerary mm 1000 Principal Axis
1000mm
Speed of Mainshaft
6000rpm
Power of Main Motor
30kw
Taper Hole of Spindle
Bt50
Cut Into
10000m/Min
Three-Axis Servo-Motor Torque
40/30/30n.M
Ponderance
48000kg
Outline Dimension
13000/3800/4800mm
Transport Package
Xyloid
Specification
5000/4000/3000
Trademark
Shandong Fanchen
Origin
China
Production Capacity
100
Packaging & Delivery
Package Size
1300.00cm * 380.00cm * 480.00cm
Package Gross Weight
48000.000kg
Product Description
| modelGMB5018 | unit | specifications |
| staging | ||
| tablesize | mm | 5000/1800 |
| Workbench bearing | kg | 3500 |
| TWorkbench T-type groove | mm | 9×22 |
| Work table height from the ground | mm | 550 |
| Spindle end face to the workbench | mm | 250-1250 |
| Spindle center to the front of the column | mm | 450 |
| Distance between two columns | mm | 2200 |
| Distance from work bench to cross beam | mm | 1500 |
| route or distance of travel | ||
| x-axis itinerary | mm | 5000 |
| yThe y-axis itinerary | mm | 1800 |
| z-axis itinerary mm 1000 principal axis | mm | 1000 |
| main axle | ||
| speed of mainshaft | rpm | 6000 |
| Power of main motor | kw | 30 |
| taper hole of spindle | BT50 | |
| attended mode | ||
| rapid traverse | ||
| xThe x-axis moves quickly | m/min | 12 |
| yThe y-axis moves fast | m/min | 12 |
| zThe z-axis moves quickly | m/min | 12 |
| Cut into | m/min | 1-10000 |
| Three-axis servo-motor torque | N.m | 40/30/30 |
| tool magazine | ||
| Knife library capacity | T | 40(60) |
| Knife diameter | mm | 127/240 |
| Tool length | mm | 500 |
| Knife weight | kg | 25 |
| precision accuracy | ||
| positioning accuracy | mm | 0.008 |
| Repeat positioning accuracy | mm | 0.005 |
| ponderance | kg | 48000 |
| outline dimension | mm | 13000×3800×4800 |
FAQ
1.:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
