Swiss Type CNC Lathe Flat Bed Machine with Bar Feeder Guide Bushing

Product Description

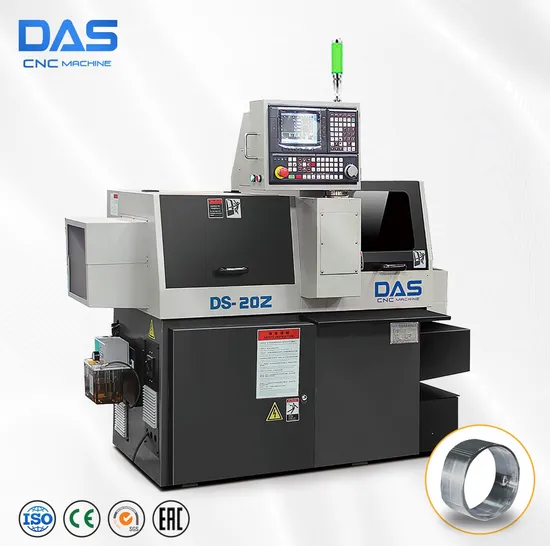

DAS DS-20Z Torno CNC High Precision Metal Automatic Hydraulic Swiss cnc lathe Machine Product Description

-The base of machine tool is integrally cast with resin sand, its features strong shock vibration resistance and less defor mation.Ensuring the high rigidity and high precision of the machine tool. Widely applied in processing of long axis co mponents for electronics, telecommunication, facsimile machine and printer etc.
-The machine tool control system use Taiwan SYNTEC system(other brand systems can be chosen).
Renowned electric appliances such as vaskawa driver, servo motor and inverter as well as other world famous brands are used.
-Drive part of machine tool use Taiwan famous brand HIWIN/PMI high precision P3 class ball bearing screw and high speed linear slide rail.
-Automatic intermitent lubricating system is used, with intermision time controllable by the system.
Product Parameters

Model	DS-20Z
Max.Swing Diameter(mm)	Φ20
Max.Spindle Speed(rpm)	8000
Spinle Travel(mm)	75
Min. Divisions(°)	Stepless
Gang Type Quantity(pcs)	5
Gang Handle Parameter(mm)	7.5
Spindle Diameter(mm)	Φ20
Max. Drilling Diameter Front(mm)	Φ7
Max.Tapping Diameter Front(mm)	M6
Radial Power Tools Quantity(pcs)	4
Radial Power Tools Max. Speed(r/min)	5000
Max.Drilling Diameter Radial(mm)	Φ8
Max.Tapping Diameter Radial(mm)	M6
Max. Saw Blade Milling Cutter Diameter Radial(mm)	30
Coolant Tank Capacity(L)	100
Middle of Spindle to Ground Height(mm)	1050
Machine Power(kw)	7
Net Weight(kg)	1780
Machine Dimensions(L*W*H)	1750*910*1700mm

Detailed Photos
1. Machine tool control system uses Taiwan SYNTEC 6TA-T3S system. Other Brand including GSK,Fanuc,Siemens are OK!
2. Machine body is cast in one piece. The lathe bed tilts by 45°and the inclined placement of lathe carriage.
3.Taiwan's high-precision spindle, comprising Japan NSK precise bearings; three-jaw hydraulic chuck or other elastic clamp can be directly fitted on the main shaft flange.
4.The drive part of machine tool uses HIWIN/PMI high precision P3 class ball bearing screw and high speed linear slide rail.
Installation Instructions

Good Feedback

Company Profile

Foshan Shunde Guoqiang Daosheng Industrial Co., Ltd. is located in Chencun, the important machinery town in Shunde District,Foshan. Sticking to the human-centering management, we are in possession of a group of highly competent technical personnel, a market oriented experienced sales team. In the gesture of sincere cooperation, we strive to establish a promise keeping and quality .
Our major products include CNC series gang tool type lathes , turret lathes, take heart-type lathes and milling-type lathes, featuring space saving, low cost and diversified arrangement etc.
They can also meet the demand for precise processing of different products. The products find widespread application in the manufacture of cars, motorcycles and accessories thereof,electronic industry, optical instruments, clocks and watches as well as special motors etc.
We have precise lathe equipment, complete quality guarantee system, prompt goods supply as well as perfect after-sales service,which ensure us the first consideration when you purchase high-precision machine tools.
