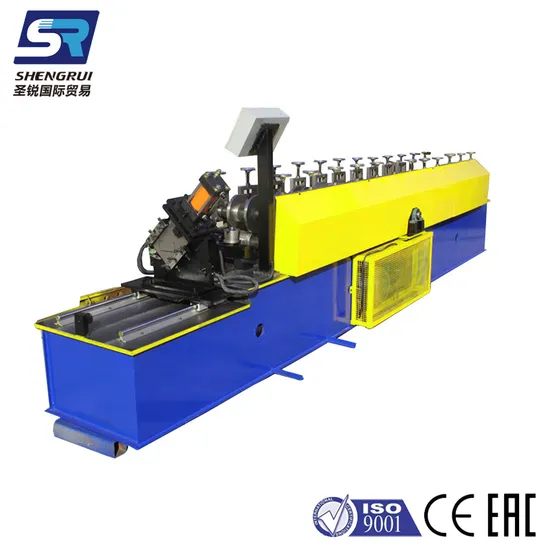

with Punching Part Cable Tray Making Roll Forming Machine

Product Description

Full automatic manufacturer direct selling cable tray roll rolling roller making forming machine
The layout of the cable tray cold roll forming machine:
Uncoiler-Leveling-Forming machine-Cutting off-Feeding frame
Introduction
The production line is highly integrated by uncoiling ,leveling,forming ,cutting off,punching,receiving and related process.The whole production line is controlled by PCL program . Operators can select a preset program to run the whole line automatically by using touch screen.The methods of operation include automatic control ,manual control,separate operation and emergency stop . Technical Specifications

Note	Item		Unit	Parameter
1	Raw material specification	Type		Q235 Steel Plate
		Strength	MPa	360
		Thickness	mm	3
		Internal diameter of the coil stock	mm	508
		Weight	T	1
2	Width of the panel		mm
3	Production speed		m/min	10-30
4	Roll material			Cr12
5	Roll drive			Gear Box
7	Main motor		Kw	45kw
8	Electrical control system			PLC Automatic Control System

Advantages
1. Good quality: We have a professional designer and experienced engineer team and the raw material and accessories we use are good.
2. Good service: we provide the technical support for whole life of our machines.
3. Guarantee period: within one year since the date of finishing commissioning. The guarantee covers all the electric, mechanic and hydraulic parts in the line except for the easy-worn parts.
FAQ
1.Q: Are you manufacturer or trading company?
A: We are manufacture and trading company.
2.Q:What info you need before you make the proposal?
A:The pipe diameter and thickness range which you need or the profile drawings, material information, your special requirements.
3.Q: what is the MOQ?
A: One set
4.Q: Do you provide installing and debugging overseas?
A: Overseas machine install and worker training services are optional.
5.Q: Can you make the machine according to my design or prototype?
A: Yes, we have an experienced team for working out the most suitable design and production plan for the machine that you are going to book with us.
6.Q: How does your factory do regarding quality control?
A :There is no tolerance regarding quality control. Quality control complies with ISO 9001.every machine has to past testing running before it's packed for shipment.
7.Q: How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference
2) We welcome you visit us and test machine by yourself in our factory.
8.Q: What about our after-sale service?
A: we provide technical support on line as well as overseas services by skillful technicians.
9.Q: What should I do if I just start a new business?
A:Contact us immediately ,we provide free consultant pre-sales service.Also we can help you to solve the material(steel coil)purchase,worker train,international market price.
10. Q:Can I visit you factory to check machines on-site ? What Should I bring when I visit your factory?
A: We are manufacturer, and we welcome customers to visit our factory. For special product design and develop, we request you bring a piece of testing material, you can test on our machines on-site.
