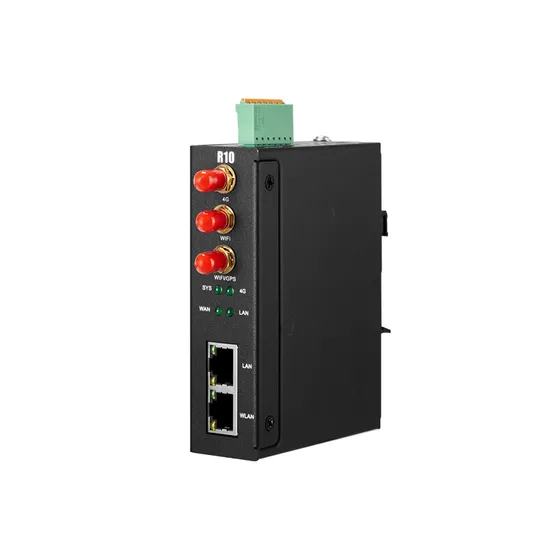

BLIIoT Factory Modbus MQTT WiFi 4G Cellular M2M Edge Industrial IoT Router
| US$83.00-110.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
R10A
Transfer Rate
10/100Mbps
Firewall
Firewall
Ports
≤4
Port Structure
Not Modular
Application
Industrial Automation
Network
LTE
Performance
Industrial Router
Architecture
MIPS CPU
Power Supply
9~36VDC
WAN
1 Channel RJ45
LAN
1 Channel RJ45
Serial Port
1 Channel RS485
Modbus Mode
Modbus Master, Modbus Slave
WiFi
2 Antenna
SIM Slot
1
Remote Management
Remote Configuration, Remote upgrade
Data transmission
Tranparent transmission support
Protocol
Modbus, MQTT
Alarm
SMS Alert, Email Alert
Edge computing
Timer, Logic control
Cloud
AWS, ThingsBoard
Application1
Security Alarm System
Application2
Automatic monitoring system
Transport Package
Box
Specification
110x83x30mm
Trademark
BLIIoT
Origin
China
HS Code
8517623600
Production Capacity
10000PCS/Month
Packaging & Delivery
Package Size
24.00cm * 24.00cm * 8.00cm
Package Gross Weight
0.700kg
Product Description
Product DescriptionThe R10 industrial router can provide wireless access network, and also can performs Modbus Master to poll meters over RS485/232 or LAN ports, then upload the data to cloud platforms under MQTT format, e.g.: AWS IoT, ThingsBoard. And the R10A industrial router can connect the remote I/O modules either by RS485/232 or Ethernet cable to monitoring data or switch on/off devices, etc.The 4G Edge router features programmable logic control, timer, event trigger, IP connection alarm functions. R10A industrial router also can used as Modbus RTU/TCP Master to collect data, convert Modbus to MQTT protocol, Transmit Transparently (Pass-through), and directly connect to cloud platforms such as AWS, THINGSBOARD etc.R10A industrial 4G router supports TLS, SSL, X.509 Root certificate to ensure the security of data transmission.When the industrial router communication fails, the data will be automatically restored and retransmit when communication restored.Product Parameters| Item | Parameters | Description |
| Power Supply | Input voltage | 9~36VDC |
| Input current | Normal: 130mA@12V. Maximum: 800mA@12V | |
| Connection | 3.5mm wiring terminal | |
| Protection | Anti-reverse connection Protection | |
| WAN | Qty | 1 |
| Interface Spec | RJ45 interface, 10M/100Mbps, adaptive MDI/MDIX | |
| Protection | ESD ±30kV (contact), ±30kV (air) EFT 40A (5/50ns) Lightning 24A (8/20µs) | |
| LAN (non-POE) | Qty | 1 |
| Interface Spec | RJ45 interface, 10M/100Mbps, adaptive MDI/MDIX | |
| Protection | ESD ±30kV (contact), ±30kV (air) EFT 40A (5/50ns) Lightning 24A (8/20µs) | |
| Serial Port | Qty | 1 |
| Type | 1 Channel RS485 or RS232 | |
| Baud rate | 1200,2400,4800,9600,14400,19200,38400,57600,115200,230400 | |
| Data Bit | 5,6,7,8 | |
| Parity | None, Even, Odd | |
| Stop Bit | 1,2 | |
| Working mode | Transparent transmission, Modbus RTU to TCP, Modbus slave, Modbus master ( R10A support but R10 can't) | |
| Protection | ESD contact: 8KV Surge: 4KV (8/20us) ESD ±8kV (contact), ±15kV (air) EFT 4KV, 40A (5/50ns) | |
| WIFI | Antenna Port qty | 2 |
| Antenna type | SMA hole type | |
| Protocol | 802.11a/b/g/n (mixed) | |
| Mode | AP mode, client mode | |
| Frequency | 2.4G | |
| Channel | Channel 1 - 13 | |
| Security | Open, WPA, WPA2 | |
| Encryption | AES, TKIP, TKIPAES | |
| Connection number | 16(Max) | |
| Speed | 300Mbps(Max) | |
| Transmit Distance | Max. 20 meters in open space where there is no obstruction | |
| SSID Broadcast Switch | Support | |
| Cellular Network | Antenna Port Qty | 1 |
| Antenna Port Type | SMA hole type | |
| SIM | Qty | 1 |
| Interface Spec | Drawer interface, support 1.8V/3V SIM/UIM card (NANO) | |
| Protection | Built-in 15KV ESD protection | |
| GPS (optional) | Antenna qty | 1 |
| Antenna type | SMA hole type | |
| Tracking Sensitivity | > -148 dBm | |
| Horizontal Accuracy | 2.5m | |
| Protocol | NMEA-0183 V2.3 | |
| Indicator light | SYS | System running indicator (blinking for 2S and then off after normal operation) |
| 4G | 4G cellular operating status indicator ( when SIM registered successfully, this indicator always on ) | |
| WAN | WAN status indicator | |
| LAN | LAN status indicator | |
| System | CPU | MIPS CPU, main frequency 580Mhz |
| Storage | 128Mbits SPI Flash | |
| RAM | 1024Mbits DDR2 | |
| Software | Network Protocol | PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, NTP, SMTP, SSH2, DDNS |
| VPN | IPsec, OpenVPN, L2TP | |
| Firewall | DMZ, DoS defense, IP packet, domain name and MAC address filtering, port mapping, access control | |
| Remote Management | Supports web remote configuration | |
| System Log | Support | |
| Firmware Update | Supports serial port local TFTP and Web upgrade | |
| Certificate | EMI | EN 55022: 2006/A1: 2007 |
| EMS | IEC(EN)61000-4-2(ESD) IEC(EN)61000-4-3(RS) IEC(EN)61000-4-4(EFT) IEC(EN)61000-4-5(Surge) IEC(EN)61000-4-6(CS) IEC(EN)61000-4-8 | |
| Others | CE, FCC, ROHS, 3C | |
| Working Environment | Working temperature | -20~+65ºC |
| Storage temperature | -40~+85ºC | |
| Humidity | 5 ~ 95%RH (non-condensation) | |
| Others | Enclosure | Metal material |
| Size | Height 110mm * Length 83mm * Width 30mm | |
| IP level | IP30 | |
| Net weight | 300g | |
| Installation | Wall mounted, DIN rail |
