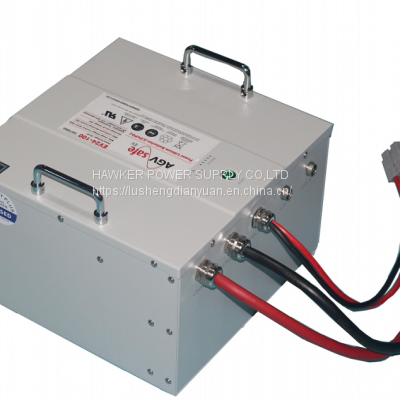

HUADAHAWKER BATTERY EV24-80（24V80AH）

Product Details

Product Description

Product Description
HUADAHAWKER BATTERY EV24-80（24V80AH）
Model: ev24-80 (24v80ah)
Product specification
Battery model:
EV24-80
Nominal voltage
25.6V
Nominal capacity
80AH
size
Box size: 356mm (L) * 331.8mm (W) * 215.5mm (H)
Installation dimension: 390mm (L) * 360mm (W) * 245mm (H)
weight
About 28.7kg
Charging voltage
29.2V
Minimum discharge voltage
21.6V
Nominal discharge current
0.5c (50a) current continuous discharge
Nominal charging current
1C (100a) continuous charging
Charging protection
The highest single voltage is higher than 3.7V, and the charging is automatically cut off
Discharge protection
The lowest single string voltage is lower than 2.7V, and the discharge is automatically cut off
Over temperature protection
The internal temperature of the battery is higher than 65 ℃, and the charging / discharging is automatically cut off
Equalizing circuit
The equalization circuit is used to equalize the slight capacity imbalance between the eight cell modules.
SOC (state of charge) measurement
Real time feedback of battery power status
Remaining power LED display
Five green lights show the power, and each one is on, the power increase value is 20%
Alarm LED
A red light, flashing alarm
RS-485 communication
RS-485 is used to communicate with the upper level or connect with other modules.
Do output
Two way dry contact do output
Ao output
Two analog outputs 0V ~ 5V, corresponding to SOC 0% ~ 100%
working temperature
-20℃～60℃
Storage temperature:
-20℃～70℃
Working humidity
Relative humidity 10% ~ 80%, no condensation
Cooling system
Passive natural cooling
Application scope
Assembled AGV
Ø electric cylinder lifting assembly type AGV
Ø non contact power supply assembled AGV
Ø engine mounted AGV
Transportable AGV
Ø rail shuttle vehicle (RGV)
Ø gripping and carrying LGV
Ø push pull transport AGV
