Waste Dielectric Oil Insulating Oil Transformer Oil Vacuum Purifier (ZY-100)

Product Description

Waste Dielectric Oil Insulating Oil Transformer Oil Vacuum Purifier (ZY-100)
Application
Series ZY high vacuum insulating oil purifier is specially designed for purification of aging transformer oil, mutual inductor oil, switch oil, capacitor oil as well as for other electrical insulating liquids. The process maintains the oil's dielectric strength, removes free, soluble water, air-gases and particulate matter.
Features
1. Duplex-stereo film evaporation technology, dewatering, degassing efficiently
2. Efficient heating system, heating uniformity, safe, reliable, and energy-conserving
3. Double-infrared liquid level sensor, pressure protective system, safe operation
4. Small, light, move conveniently5. Can live operated with electricity
6. Can be as an independent vacuum source for vacuum oiling and drying.
Advantages
Series ZY is efficient and economical insulating oil purifier. Doplex-Stereo film evaporation technology, unique and advanced dewatering, degassing components, making working efficiency is 3-5 tims than traditional oil purifier. Machine adopts interlocked protective system, double-infrared liquid level sensor and pressure protective system to make sure the machine work unattended, operation easy, safe and reliable.
1. Remove water, gas, impurities quickly
2. High efficiency, low cost
3. ISO, CE certificated

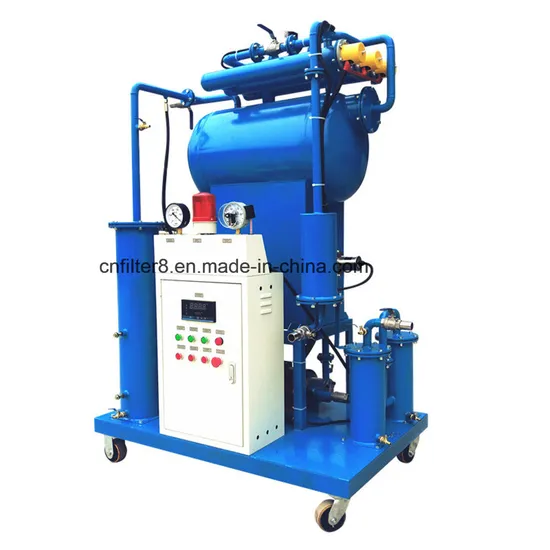

Detailed Image
Techinical Parameters

Parameters		Unit	ZY-6	ZY-10	ZY-20	ZY-30	ZY-50	ZY-100	ZY-150	ZY-200	ZY-300
Flow rate		L/h	360	600	1200	1800	3000	6000	9000	12000	18000
Vacuum degree		MPa	-0.06~-0.095
Working pressure		MPa	≤0.3	≤0.4	≤0.4	≤0.4	≤0.5	≤0.5	≤0.5	≤0.5	≤0.5
Temperature range		°C	20 ~ 80
Continuous working		H	150
Power supply			Three phase,50HZ ,380V(or as per customer requirement)
Working noise		dB(A)	60	61	63	70	70	75	70	70	70
Heating power		kW	9	11	13	15	30	48	58	70	85
Total power		kW	9.7	12.5	14.5	16.5	33.5	53	65	76	94
Oil inlet/outlet		mm	φ20	25	φ25	φ25	φ32	φ42	φ50	φ50	φ60
Weight		Kg	150	230	250	270	300	500	700	900	1100
Size	L	mm	970	1050	1100	1150	1200	1600	1600	1800	1900
	W	mm	630	750	850	900	950	1000	1100	1200	1200
	H	mm	900	1300	1400	1450	1500	1800	1800	1900	1900

Guarantee Value

Item	Guarantee indexes
Moisture content	≤5PPM
Impurity size	≤1 micron
Gas content	≤0.1%
Breakdown voltage	≥70
