Portable Handheld Powder Hopper Coating Machine

Product Description

Portable Electrostatic Small Type Powder Coating Machine Spray Gun Product Description
Product performance
The V6 electrostatic spraying machine is a product that uses imported components and international advanced technology to create a balance between quality and speed. Full screen intelligence, one click operation. Built in imported movement, high voltage module with precise and stable performance, delicate leveling, no exposed grooves, and 360°no dead corners to overcome difficulties.This quick color change powder coating gun is suitable for workpieces that need to be coating with multiple colors, greatly improving your productivity.
★ ★ Input power supply voltage: 110-240VAC/140VA
★ ★ Input power: 50W ★Frequency:50Hz/60Hz
★ ★ Output voltage: 0~120KV ★Short circuit current: 100A
★ ★ Maximum input pressure: 10bar/145psi
★ ★ Input air pressure: 0-0.6 Mpa
★ ★ Output air pressure:0-0.5Mpa
★ ★ Powder output is up to 600g/min
★ ★ Volume of powder drum: 0.5-1L(custom)
★ ★ Weight 10KG
Product advantage
Super strong static electricity, strong surface adsorption force, releases 100000 volts of high voltage current. Overcome dead corners, grooves, and other issues with one shot drifting by without the need for re spraying. Advanced Venturi technology ensures uniform spraying and saves a significant amount of powder. Ultra lightweight design improves spraying efficiency and provides a comfortable touch for the spray gun. High safety performance and longer service life. Functional advantages Accurate adjustment function of current and voltage: supports precise current adjustment to ensure stable spraying effect. Digital valve technology: Advanced digital valve technology is adopted to ensure stable flow and pressure during the spraying process. PCC precise current control technology: It can provide precise current control below 10 μ A to ensure that the powder will not overcharge and improve the spraying quality.

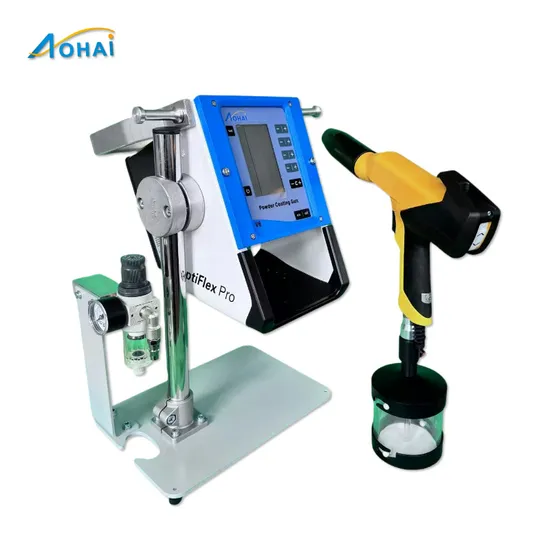

Composition of AH-V6-S Manual Powder Coating Spray gun machine
1.LCD digital display LCD makes spraying more convenient and controllable.
It has a super charging function and calibration function that can be enhanced up to 120KV120uA, and accurate feedback system instructions.
2.Upgraded spray gun
.Strong static electricity,High powdering rate , excellent results
.Upgraded version spray gun, one-time injection molding, moisture-proof and leak-proof, wear-resistant and durable.

3.Small powder coating hopper Durable Powder coating is uniform
4.Oil-water separator Configure Japanese SMC precision oil-water separator Effectively filter excess water, oil, and clean gas inside the compressor.
Comparing with existing mechanical valve controlled models, this system is improved to the digital valve technology, which offers precise regulate of powder output, generates more smooth flow and uniform coating thickness.
This digital system can flexibly and precisely adjust both current and voltage. which helps to optmize the amount of charges for powders/objects.
Touch keys for high-grade spraying operations. Use the touch keys to select any of the electrostatic coating processes "Flat-parts coating," "Complicated parts coating," or "Re-coating Workpiece."
Allows experienced users to create and store their own application programs, optimized for your parts and powder. Each part can be coated always with its individual settings.
Product Parameters
Specification

No	Item	Data
1	Voltage	110V-240v
2	Frenquency	50/60HZ
3	Input power	50W
4	Max. output current	150ua
5	Output power voltage	0-120kv
6	Input Air pressure	0.3-0.6Mpa
7	Powder consumption	Max 600g/min
8	Maximum input pressure	10bar/145psi
9	Weight	10Kg
10	Maximum input pressure	10bar/145psi

Detailed Photos


Company Profile
Dezhou Aohai Coating Equipment Co., Ltd. is a professional manufacturer and exporter of coating equipment, dedicated to the design, development and production of various powder coating equipment. We have CNC punching machines, bending machines, laser cutting machines, etc., and have a good production space to ensure our production capacity and efficiency. We have a development technical team with extensive experience in the powder coating industry and a professional sales and service team, which enables us to provide quality assured powder coating equipment and services to customers from all over the world. The main products are manual/automatic powder electrostatic spraying machine, automatic spraying control system, self-circulation powder supply system, automatic reciprocating elevator, multi-tube cyclone separator, and so on. The products are novel, exquisite and durable, well received by domestic and foreign painting experts, and have agents in many countries in the world. We are always committed to satisfying our customers and our partners.





Packaging & Shipping
After Sales Service

FAQ:
Q: Do you have the powder coating machines in stock?
A: Yes, almost we have in stock, if no stock, we can also arrange production for you within 3 work days.
Q: How long is the delivery time?
A: Normally It takes about 3 days to ship, and 5-8 days to deliver to your physical address.
Q: Which model should I choose?
A: Our professional sales will recommend specially according to your needs. We offer abundant types with different features to suit various coating requirement for simple or complicated work pieces.
Q: How to operate this powder coating machine, any video or instructions?
A: We have operation video and instruction manual to teach you how to use the machine. Our maintain services team
will offer the best service for you.
Q: Do you supply spare parts for the powder coating machine?
A: Sure, all the spare parts are available.
Q: Can I order special color or special size or logo that we need?
A: Definitely, we can customize brand and change the design of control panel as you required.
Q: What is your terms of payment?
A: Payment=5000USD, 30% T/T in advance, balance before shippment.
