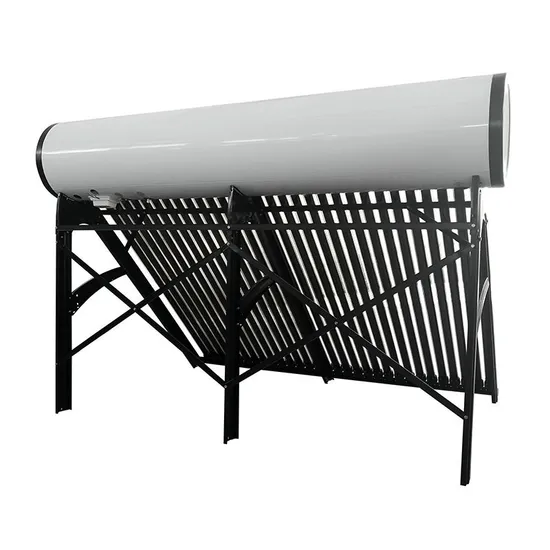

Updated Design Solar Heater Unpressurized 200 Liters Made of Stainless Steel with Galvanized Steel Tank for Africa
| US$79.00-159.00 | 10 Sets (MOQ) |
Basic Info.
Model NO.
200L
Max. Capacity
360L
Structure
Compact Type
Pressure
Unpressurized
Interior Material
Stainless Steel
Collector Components
Glass Vacuum Tube
Composition
Collector
Certification
CE, ISO9001, CCC, RoHS, CB, SASO
Transport Package
Wooden Box
Specification
200L
Trademark
MLSUN
Origin
China
Production Capacity
300000 Sets/Year
Packaging & Delivery
Package Size
170.00cm * 50.00cm * 50.00cm
Package Gross Weight
22.000kg
Product Description
We produce Non-pressure and Pressure solar water heaters.We also provide OEM manufacture for our customer's Brand/LOGO.
Technical specifications for Non-pressure solar water heaters (stainless steel inner tank + galvanized steel outer tank).
Capacity: 100 liters - 360 liters
| Solar water heater (no pressure) | Capacity | 100 liter | 120 liter | 150 liter | 180 liter | 200 liter | 240 liter | 300 liter | 360 liter |
| Stainless steel Food grade | Tube quantity | 10 tubes | 12 tubes | 15 tubes | 18 tubes | 20 tubes | 24 tubes | 30 tubes | 36 tubes |
| Vacuum tube | Φ58×1800mm | ||||||||
| Coating | CU/SS/AL three targets coating | ||||||||
| Inner tank | food grade, stainless steel SUS304-2B, thickness 0.41mm | ||||||||
| Outer tank | galvanized steel, thickness 0.31mm | ||||||||
| Tank diameter | inner tank 360mm/outer tank 460mm | ||||||||
| Insulation | polyurethane 50mm, high density 40kg/m3 | ||||||||
| Heat preservation | 72-80 hours | ||||||||
| Bracket | galvanized steel, thickness 1.5mm | ||||||||
