Reliable Sf6 Percentage Measurement Device for Electrical Systems

Reliable Sf6 Percentage Measurement Device for Electrical Systems

US$1.00 1 Set (MOQ)

Basic Info.

Model NO.
SFP
Customized
Non-Customized
Portable
Portable
Gas
Sf6
Type
Sf6 Percentage Analyzing Device
Purity Measurement Range
0%~100%
Measuring Time
<2min.
Display Parameters
Purity Value, Time, Date, Battery Power
Battery Performance
Charging Time More Than 20 Hours , Can Use 10 Hour
Data Storage
100 Groups
Functions
Measure Sf6 Purity of Sf6 Air&Mixed Gas of Sf6&N2
Description
Sf6 Purity Analyzer Sf6 Percentage Analyzer
Application Field
Electrical Industry
Features
Portable Design, Quick Test Speed
Advantages
Quickly and Accurately Measure The Purity of Sf6
Power Supply
AC 220V, or Built-in Rechargeable Battery
Delivery Lead Time
7 Days After The Order Is Confirmed
Shipping Method
Suggest to Ship by Air or Express
Trade Terms
EXW, Fob, DDU, CIF, etc.
OEM Service
Available
Transport Package
It Is Packed in Plywood Case
Specification
25cm*10cm*30cm
Trademark
Delta
Origin
China Mainland
HS Code
9031809090
Production Capacity
100 Sets Sf6 Percentage Analyzing Device / Month

Packaging & Delivery

Package Size
58.00cm * 50.00cm * 40.00cm
Package Gross Weight
20.000kg

Product Description

Product Description

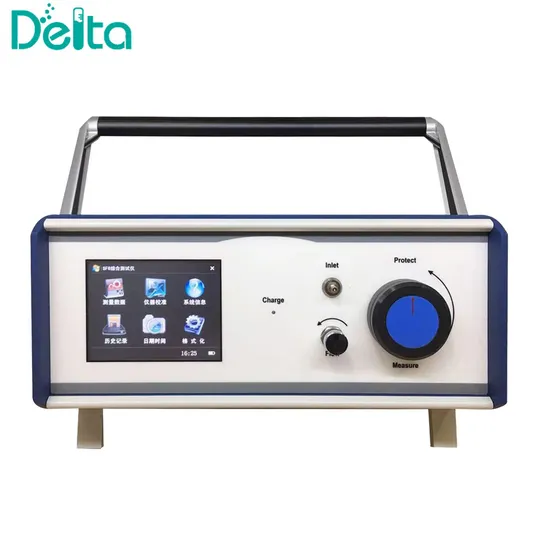

SFP Sf6 Purity Analyzer in Switchgear SF6 Percentage Analyzing Device is used to measure SF6 purity of SF6 air and the mixed gas of SF6 and N2.
It can quickly and accurately measure the purity of SF6.
LCD screen directly displays purity value, time and date, battery power, etc.
Under normal circumstances, after starting the instrument, it can instantly measure and get the purity value quickly. Product Parameters
Item NameSFP Sf6 Purity Analyzer in Switchgear SF6 Percentage Analyzing Device
PurityMeasuring Range0%~100%
Accuracy±0.5%
Measuring time<2min.
Temperature-40ºC~+60ºC
Humidity0~100% RH
Power supplyAC 220V
Built-in rechargeable battery
Battery performanceCharging time more than 20 hours , can use 10 hours
Weight3kg
Dimension25cm*10cm*30cm
Operating temperature-30ºC~+50ºC
FeaturesPortable design: convenient to carry and easy to use.
Quick test speed: need no wait, quick to get purity value.
Small gas consumption: when measured, gas consumption only around 0.5L (101.2kPa).
Self-locking connectors: adopts Germany imported self-locking connectors, Safe and reliable, no leaks.
Data storage: can store up to 100 groups test data.
Clear display: LCD screen to directly display purity value, time and date, battery power, etc.
RS232 Interface: can connect to serial printer, to print data.
Built-in power supply: built-in high-capacity rechargeable lithium battery, fully charged can continuous work for 10 hours;
