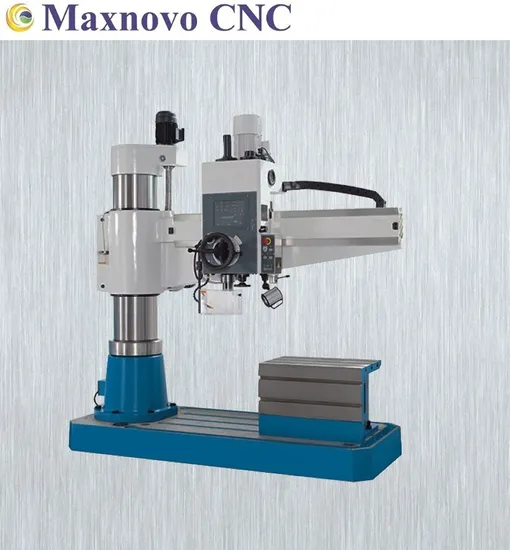

R60vt PRO High Precision Radial Arm Drilling Machine with Touch Screen and Servo Motor

Product Description

MM-R60VT PRO - High Precision Servo-Conventional Radial Drilling Machine with Touch-Screen and Servo-Motor - MAXNOVO MACHINE
This kind of MM-R60VT PRO from MAXNOVO MACHINE represent the new generation of the widely used hydraulic Radial Drilling Machine. The unique operating concept simplifies machining and supports the user during the selection of operating parameters. Such high precision radial drill press with Large Touch Screen and Spindle Feed by Advanced Servo Motor. They allow precise drilling, countersinking and thread cutting and are an ideal solution for single parts and small batch productions. These drilling machines are widely used in repair and maintenance operations, tool and steel construction.
Product Description

High Precision Variable Speed Radial Drilling Machine with Large Touch Screen and Spindle Feed by Advanced Servo Motor
Main Feature :
Convincing Arguments: Quality, Efficiency and Price -Maximum Drilling Capacity in steel is 60 mm
-Electronically Controlled Servo quill feed with Large Touch Screen Display
-Servo motor-driven quill feed
-Unique operating concept
-Advanced control of machine functions
-Rigid design with proven high stability
-The quill feed takes place by Advanced Servo Motor
-Electronically adjustable drill depth includes checking of input value
-Drilling depth is electronically set and the input value is checked by the system
-A servo motor provides infinitely variable control of the quill feed -- upon reaching the preselected drilling depth, the quill automatically returns to the starting position
-Various alarm screens warn the operator in case of operational errors and display information on the operational state
-Measuring units for input and display can be selected by the operator (mm or inch)
-Base, column, boom and gear head are made of premium high-quality cast
-Thread cutting is completely manual, such as operators change the quill's rotational direction upon reaching the drilling depth
-Operator sets the boom height by touching the respective icon, whereupon the system automatically releases and fixates the hydraulic clamps, turns off the lift motor, and considers all set limit stops
-Drill head and column can be clamped/released together or separately
-Boom can be moved vertically without losing the spindle-to-bore alignment
-Control software also provides recommendations for RPM and feed in relation to desired drill size
-The high-performance coolant system enabled at the touchscreen and will be turned on and off as a function of the main spindle
-The machine has 2 gear steps, and the rpm can be infinitely varied and displayed at the monitor
-Certificate of Original (CO, FORM A, FORM E, FORM F)

Product Parameters
Technical Data :

Product Name :	High Precision Radial Drilling Machine with Touch Screen
Product Item :	MM-R60VT PRO
Max. Drilling Capacity (in steel) :	Ø 60 mm
Max. Drilling Capacity (in cast iron) :	Ø 70 mm
Max. Tapping Capacity (in cast iron) :	M 50
Max. Tapping Capacity (in steel) :	M 45
Max. Drilling Depth :	315 mm
Clamping Type :	Hydraulic
Working Area
Cube Table Dimensions :	750 X 500 X 500 mm
Throat (Distance spindle-to-column) :	350 - 1600 mm
Spindle nose-to-table surface distance :	350 - 1250 mm
Drill Head Travel (Horizontal) :	1250 mm
Arm Stroke (Vertical) :	585 mm
Column Diameter :	Ø 350 mm
Headstock
Spindle Speed Range :	38 - 2000 RPM
Spindle Speed Steps :	Infinitely Variable Speed
Spindle Mount :	MT5
Feed
Spindle Feed Range :	0 - 300 mm / Rev
Spindle Feed Steps :	Infinitely Variable Speed
Drive Capacity
Main Motor :	4000 W
Stroke Motor :	1500 W
Connecting Voltage :	Three Phase 400V
Measures and Weights
Machine Dimensions :	2490 X 1050 X 2780 mm ( Length X Width X Height )
Packing Size :	2630 X 1180 X 2530 mm ( Length X Width X Height )
Gross Weight :	3950 KGS
Standard Accessory :	Touch Screen Control Panel, Servo Motor for Spindle Feed, Cube Table, Work Lamp, Coolant system, Hydraulic Motor, Stroke Motor, Tools and Toolbox

Our Advantages
Guarantee of Quality
The excellent quality is our dignity. All MAXNOVO MACHINE products are produced with high quality standards.
There are same or similar products on the market, however, those products could not meet the MAXNOVO MACHINE strict quality.
Our products are convincing by outstanding quality, accurate manufacturing and at a cost-efficient price and trustable performance. Well trained quality control department is the first contact for adhering to quality on site.
They are responsible for the dimensional accuracy of the components as well as their control and the quality of the manufacturing process.
A team of quality control engineers directly influences the production process on site by regular training courses and tests.
What is more, they are closing working together with the technical department in the factory.
Due to this intensive care at the production site we are able to achieve literally the MAXNOVO MACHINE. The Metal Scraper Craftsmanship is one of the most important techniques in machine tool industry. To make sure the surface perfectly flat
and smooth, we repeat check and scrap by hand with Time-Proven Unique Techniques that passed on to generations.
At MAXNOVO MACHINE, we strictly enforced that all our contact surfaces must be scrapped with at least 20 spots per square inch
and 40% of contact rate. This can guarantee the True Geometric Accuracy for our high precision machines . Casting is the core of machines, we underscores the importance of its development and production.
At MAXNOVO MACHINE, each casting piece passes various tests, such as high-pressure spray, annealing furnace,
and stress release to assure its stability. This can guarantee all customers with excellent quality of machine parts. The Excellent Quality is our dignity. At MAXNOVO MACHINE, our team is insisting on examining every single part of work-pieces
with strictly high quality standards. In order to fulfill the Large-scale manufacturing requirements in various machine tools, we invested a great deal of resources
and man power in innovating its manufacturing technology. At MAXNOVO MACHINE, the whole machining line is completed
in a temperature-controlled environment so as to maintain this outstanding quality and excellent accuracy.
High Precision Radial Drilling Machine for Demanding Users !
FAQ :
1.Question : Can you do OEM ?
Answer : Yes, we have the ability to do OEM / ODM to meet clients' requirements.

2. Question : How does your factory do regarding quality control ?
Answer : Assuring Quality is our dignity and quality control engineers specially be responsible for quality checking in each process such as Incoming Quality Control , In Process Quality Control , Outgoing Quality Control , Environment Control, Product Traceability System , Internal Audits & Calibration, Equipment Control & Maintenance , Control of Non-Conforming Materials and etc.
