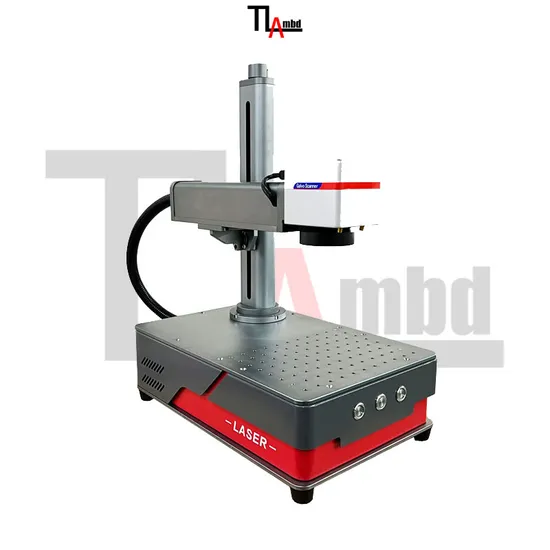

Best Price and Quality Desktop Mini Fiber Laser Marking and Engraving Machine
| US$1,000.00-1,700.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
FM1-1
Applicable Material
Metal
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Solid Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Keywords
Fiber Laser Marking Machine
Function
Making Metal&Non Metal
Laser Power
20W/30W (QS)
Motherboard
Bjjcz
Software Support
Support Windows XP/7/8/10
Support Material
Metal&Non Metal
Laser Source Brand
Raycus
Max Position Speed
7000mm/S
Continuous Working Time
Continuous Working Time
Pulse Duration
90-120ns
Frequency
30kHz~80kHz
Min. Linear Width
0.01mm
The Whole Power Consumption
500~600W
Marking Depth
0~1.0mm
Spot Size
43um
Transport Package
Wooden Box
Specification
30kg
Trademark
LAMBD
Origin
China
HS Code
8456110090
Production Capacity
3000sets/Year
Packaging & Delivery
Package Size
33.00cm * 42.00cm * 64.00cm
Package Gross Weight
33.000kg
Product Description
Specification| Laser source brand | RAYCUS/MAX/JPT | Laser source power | 20W/30W |
| Max single pulse energy | 0.67mj | 20W marking area | 110*110mm/150*150mm/175*175mm(marking light) |
| Pulse duration | 90-120ns | 30W marking area | 110*110mm/150*150mm/175*175mm /200*200mm/220*220mm(marking light) |
| Laser wavelength | 1064nm | Marking depth | 0~1.0mm |
| Frequency | 30KHz~80KHz | Spot size | 43um |
| Laser power density | 80ZMW/mm2 | Min. linear width | 0~1.0mm |
| System environment | WINDOWS XP/7/8/10 | Repeat accuracy | 0.005mm |
| Supported Image format | BMP,JPG,JPEG,GIF,TGA,PNG,TIF,TIFFAI,DXF,JPC,PLT,SVG,BOT,DST | Max position speed | 7000mm/s |
