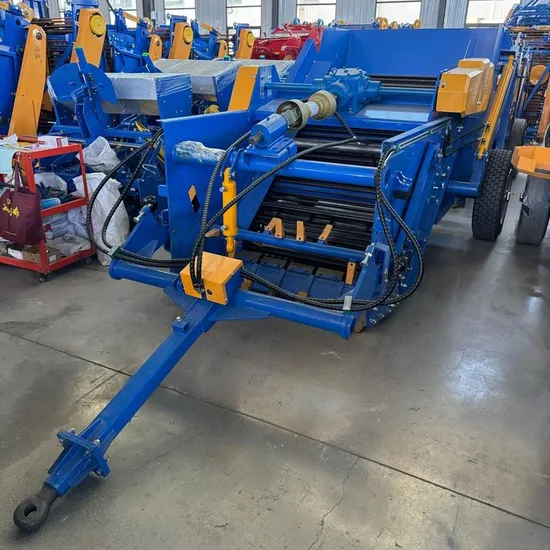

Stone Picker
A stone picker is an agricultural machine specially used to collect stones on the surface of the field and within a certain depth. It separates stones from the soil through digging, screening and conveying devices, and collects them into storage boxes, thus facilitating the subsequent use of the land.
The main features of the stone picker include efficient working performance and adaptable design. Its working principle is to use the digging device to turn over the stones in the soil, remove the excess soil through the separation and screening device, and then transport the stones to the storage box by the conveying device. In addition, the stone picker is usually equipped with a hydraulic unloading system, which can easily unload the collected stones to the designated location. The working width and digging depth of the machine can be adjusted according to actual needs and are suitable for different types of soil and terrain.
The stone picker is widely used in the fields of agriculture, garden landscape construction, and industrial site cleaning. In agriculture, it is used to clean stones in farmland and create good soil conditions for sowing and farming. In garden landscape construction, the stone picker can be used to level the land to ensure the cleanliness and beauty of the construction site. In addition, it can also be used for beach sand cleaning and site finishing in industrial areas.
Product Parameters

11JSA-120 PARAMETER LIST
NO.	PROJECT	DESIGN VALUE	NO.	PROJECT	DESIGN VALUE
1	model	11JSA-120	15	Type of Excavation Device	Bucket Teeth Shovel Knife
2	Structural Style	PullType	16	Blade Material	Cast SteelTip
3	Walking mode	Wheel Type	17	Digging Depth Adjustment Range	0~150mm
4	Tire/track Model	ST225/75R15	18	Conveyer Type	Hydraumatic
5	Number of Tires/tracks	2	19	Pick up the Smallest Size	32mm
6	Tire/track Spacing(Center)	1785mm	20	Type of Cleaning Separation Device	vibrating screen
7	Minimum Ground Clearance	360mm	21	Conveyer type	Grid Chain Type
8	Working Size (length*width*height)	5000*2050*1750mm	22	Conveyor Chain Clearance	50.8mm
9	Transport dimensions (length*width*height)	3370*2050*1750mm	23	Chain bar mater ial	45CS
10	Overall Weight	1870KG	24	Collection Method	Box Type
11	Working Width	1200mm	25	Volume of Collection Box	0.8m³
12	Operation Efficiency	0.13~0.2 ha/h	26	Discharge Method	Back Dump
13	Supporting Power/Machine Horsepower	≥80HP	27	Discharge Height	1600mm
14	Matched To The Power Output Shaft Speed	540/720 r/min	28
Note:The values in the specification table are theoretical values,please refer to actual values.

Detailed Photos
IMPROVE CLEANING EFFICIENCY
The stone picker can clean up stones from a large area of land in a short time, which greatly improves efficiency compared with the traditional manual picking method. It can quickly turn over and screen out stones in the soil, greatly reducing the cleaning time, and is especially suitable for stone cleaning work in large areas of farmland and sites.
REDUCE LABOR INTENSITY
Traditional stone cleaning work requires a lot of manual participation, with high labor intensity and low efficiency. The automated operation of the stone picker reduces dependence on manpower, reduces labor intensity, and improves work safety, avoiding accidental injuries that may occur when picking up stones manually.
IMPROVE SOIL CONDITIONS
By cleaning stones from the soil, the stone picker can create more ideal conditions for subsequent agricultural planting or land development. The cleaned land is flatter and the soil structure is looser, which is conducive to the growth of crops and the operation of mechanical equipment, thereby improving the utilization value of the land.
ADAPT TO A VARIETY OF TERRAINS
The design of the stone picker enables it to adapt to different terrains and soil conditions. Whether it is flat farmland, slopes, or sandy soil, it can be operated flexibly. Its digging depth and operating width can be adjusted according to actual needs to ensure that ideal cleaning effects can be achieved in various environments.
MULTI-FUNCTIONAL APPLICATION
The stone picker is not only suitable for the agricultural field but can also be widely used in a variety of scenarios such as garden landscape construction, beach cleaning, industrial site preparation, etc. Its versatility makes it an efficient general-purpose equipment that can meet the needs of different users.




FAQ
Q1. What are your terms of payment?
A1:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q2. What are your terms of delivery?
A2:EXW, FOB, CFR, CIF. Which delivery terms depend on your choice?

Q3. How about your delivery time?
A3: Generally, it will take 30 working days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Most time we have some in stock.

Q4. Are you interested in a dealership with a local company?
A4: Of course, we are quite interested in this business. We'd like to cooperate with some local partners to sell more HONGYOU machines in the local market and supply better service.


Q5. Do you test all your goods before delivery?
A5: Yes, we have 100% test before delivery and we can email you the test video if you need it.

Q6.Can you customize the machine for me?
A6: Yes, we can customize it according to the customer's requirements.
