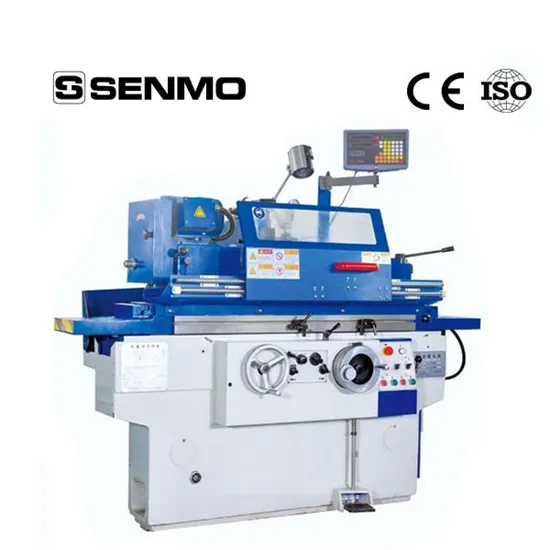

Universal Cylindrical Grinding Machine M1420h Senmo
| Negotiable | 1 Set (MOQ) |
Basic Info.
Model NO.
M1420H
Type
External Grinding Machine
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Manual
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
Precision
Certification
CE
Condition
New
Transport Package
Full Closed Plywood Box
Trademark
SENMO
Origin
China
HS Code
84602911
Product Description
| Cylindrical Grinding Machine M1420H/F Feature |
| M1420H/F universal Cylindrical Grinding Machine is the latest up to up grade products. For grinding the workpiece of inner and outer cylindrical and tapered, the most suitable for single piece and small batch production use. Headstock by a variable frequency motor drive, continuously variable transmission. Longitudinal movement of the machine by hydraulic stepless transmission, can also hand-wheel drive; wheel lateral movement with hydraulic quick retreat and manual feed function. |
| Specifications | M1420H/FX500 | M1420H/FX800 |
| External grinding diameters | Φ8-200mm | Φ8-200mm |
| Internal grinding diameters | Φ13-100mm | Φ13-100mm |
| Center height | 135mm | 135mm |
| Workhead spindle speed | 50HZ: 25-380r/min stepless | 50HZ: 25-380r/min stepless |
| Max travel of table | 650mm | 950mm |
| Hydraulic traverse speeds | 0.1-4m/min | 0.1-4m/min |
| Max travel of worktable | 50kg | 50kg |
| Grinding length external/internal | 500/125mm | 500/125mm |
| Swivel range of worktable | -14° | -10° |
| Max peripheral speed of grinding wheel | 38m/s | 38m/s |
| External wheel size | MaxΦ400x50xΦ203mm MinΦ280x50xΦ203mm | MaxΦ400x50xΦ203mm MinΦ280x50xΦ203mm |
| Internal wheel spindle rotating-speed | 16000r/min | 16000r/min |
| Workhead and tailstock center | NO.4 Morse | NO.4 Morse |
| Machine motor power | 5.625kw | 5.625kw |
| Overall dimensions(LxWxH) | 2500x1600x1500mm | 3000x1600x1500mm |
| Machine weight | 2500kg | 3000kg |
| Standard Accessories | Optional Accessories | |
| ·Complete set of electric equipment | ·Wheel balancing stand | |
| ·Grinding wheel dresser | ·Radius dresser | |
| ·Wheel flanges | ·Center rest close type | |
| ·Wheel balancing mandrel | ||
| ·3 Jaw chuck | ||
| ·Chuck base | ||
| ·Open type steady rest | ||
| ·Driving dog | ||
| ·Carbide tipped center | ||
| ·Support | ||
| Working Accuracy | ||
| O.D.Roundness | 1.5/2.5μm(O.D/I.D) | |
| Uniform of dia. in longitudinal section | 5/8μm | |
| Surface roughness | Ra 0.32/0.63μm(O.D/I.D) |
