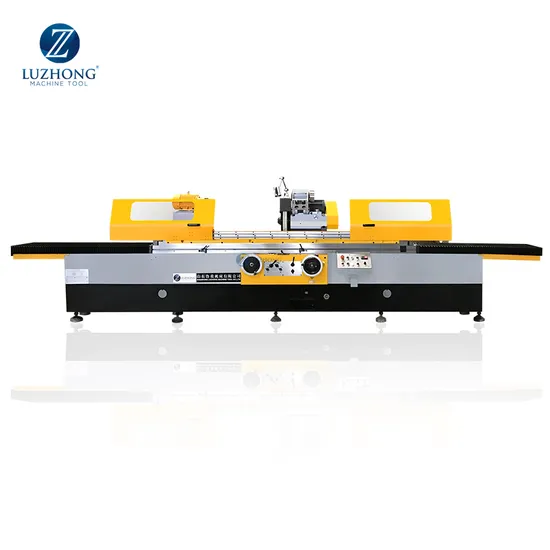

Universal internal and external M1432 cylindrical grinder machine

Product Description

Universal internal and external M1432 cylindrical grinder machine
Product Description
Product Parameters
The main performance characteristics:

Cylindrical grinding machine	M1432-1000
Diameter of grinding	8~320mm
Maximum grinding length	1000mm
Grinding dia.	13~80mm
Grinding depth	125mm
ID grinding speed	10000r/min
Maximum spindle load-bearing	150kg
Maximum travel of working table	1100mm
Speed of working table	100~4000mm/min
Rotary angel of working table	-3~+7°
Rotary angel of headstock	-30~90°
Rotary angel of grinding wheel	±30°
Center height	180mm
Center sleeve taper	4#
Grinding wheel size	Φ500x50xφ203
Speed of headstock	25/50/75/110/150/220r/min
Speed of grinding wheel	1340r/min
High-speed travel of grinding wheel	50mm
Maximum travel of grinding wheel	280mm
Feeding rate of grinding wheel handwheel per grid	0.0025mm
Feeding rate of grinding wheel handwheel per rev	2mm
Power of grinding wheel motor	5.5kw
Power of headstock motor	1.5kw
Power of oil pump motor	0.75kw
Power of cooling motor	0.2kw
Dimension (length * width * height)	3650*1810*1515mm
Weight	3700kg
Roundness Accuary:	≤2 μm
Cylindricity Accuary:	≤3 μm
Roughness(ID/OD)	Ra 0.32 μm

Detailed Photos
Company Profile
FAQ

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
