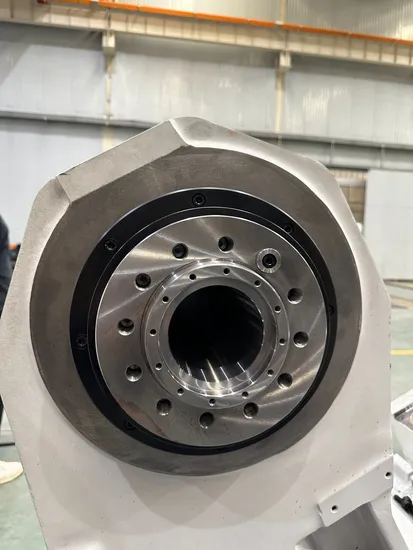

High Precision Metal Ck6132 Automatic Small CNC Lathe

Product Description

The CK6132 digital control lathe has several significant advantages compared to traditional CNC lathes:
High Precision: The CK6132 digital control lathe employs more precise measurement and control technologies, enabling higher machining accuracy and stability. Real-time measurement of the workpiece and tool positions allows for timely compensation, reducing machining errors and enhancing precision.
High Efficiency: During machining, the CK6132 lathe can monitor the status of workpieces and tools in real-time, adjusting machining parameters accordingly to effectively improve machining efficiency. Precise control of the machining process also reduces debugging and scrap rates, thereby increasing overall production efficiency.
High Automation Level: Integrated with advanced sensors and automatic control systems, the CK6132 lathe achieves a higher degree of automated machining. Operators typically only need to set machining programs and monitor the process, significantly lowering skill requirements and reducing errors caused by human factors.
Strong Adaptability: The CK6132 lathe can accommodate complex machining requirements and diverse types of workpieces. Flexible programming and adjustments enable quick adaptation to different machining tasks, reducing setup and changeover times and improving equipment utilization.
Data-driven Management: The CK6132 lathe allows for recording and analysis of machining data, facilitating optimization and management of the production process. Through data analysis, potential issues can be identified and addressed, further enhancing production efficiency and quality.
Overall, the CK6132 digital control lathe offers clear advantages over traditional CNC lathes in terms of precision, efficiency, automation, adaptability, and data-driven management. It is a key equipment widely applied in modern manufacturing industries.
Product Parameters

ITEM	UNIT	PARAMETERS
CNC system		GSK
Swing over bed	mm	300
Max. rotation diameter of the support plate	mm	180
X-axis Max. strok	mm	600
Z-axis Max. strok	mm	550
X-axis rapid traverse speed	mm/min	8000
Z-axis rapid traverse speed	mm/min	8000
Spindle through-hole	mm	48
Spindle head specifications/taper		A2-5/21°
Main motor power	kw	4/5.5
Spindle speed	rpm	3000
Tool holder form		Four-position tool turret
Tool handle specification	mm	20*20
Quasi compact mode		Pneumatic clamping/Three-claw chuck
X-directiong motor torque		4
Z-directiong motor torque	nm	4
X/Z motor connection method		Direct connection
X-axis lead screw specification		2506
Z-axis lead screw specification		4006
Tailstock center cone hole		MT-4
Repetitive positioning accuracy	mm	0.01
Positioning accuracy	mm	0.02
Cooling water pump power	w	120
External dimensions of machine tools	mm	1900*1300*1600
Net weight of machine tool	kg	1200
