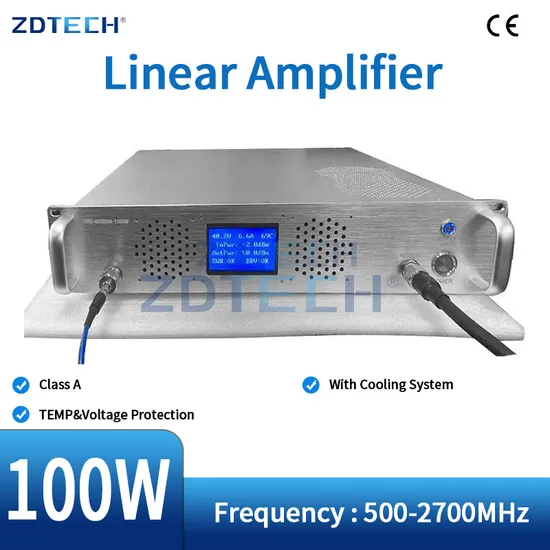

500-2700MHz High Power Linear Amplifier with N Female Connector Signal Amplifier
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Model NO.
ZD-LA-500-2700MHz-50W
Support Network
CDMA
Information content
Data
Certification
RoHS
Condition
New
Frequency Band
500-2700MHz
Working Voltage
DC+32V
Application
Signal Amplifier
Gain
50dB
Connector
N Female
Transport Package
by Box
Specification
265x132x28.5MM
Trademark
ZD TECH
Origin
China
HS Code
8543209090
Production Capacity
2000pieces/Month
Product Description
Main technical parameters| Items | parameters |
| Frequency range | 500-2700Mhz |
| Output Power | 50 W |
| Gain | 50 dB |
| Gain Flatness | ±1.5dB |
| IMD3 | -26dBc |
| Output I.C.P | +53.0dBm |
| Operation Mode | Class A |
| Impedance | 50Ω |
| Input Return Loss | 9.5dB (min.) / VSWR : 2.0 (max.) |
| Output Return Loss | 9.5dB (min.) / VSWR : 2.0 (max.) |
| AC Supply Input | AC100V±15% / 1φ, 50 / 60Hz, 300VA |
| Maximum RF Input Power | +3.0dBm |
| Cooling | Forced Air Cooling |
| Protection Circuits | Over Temperature Protection Power Supply Voltage Protection |
| RF Input | N Female |
| RF Output | N Femal |
| Operating Temperature | 0ºC to +40ºC |
| Storage Temperature | -15ºC to +65ºC |
