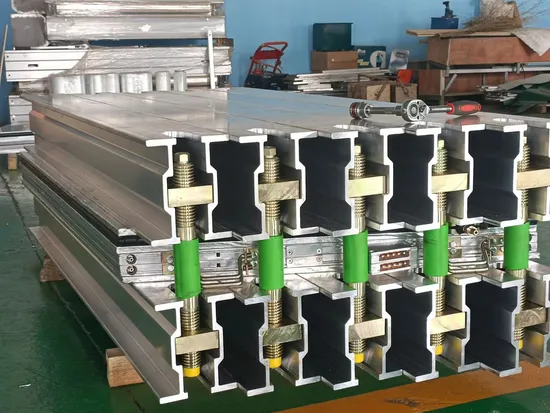

Heat Vulcanizing Conveyor Belt Press Machine

Product Description

Product Description Rubber belt splicing vulcanizing press machine
Rubber belt splicing vulcanizing press machine
Conveyor belt vulcanizing joint cure machine press is for conveyor belt hot vulcanizing joint, widely used in the field of jointing of canvas, nylon, steel cord conveyor belt at spot in metallurgy, mining, power plants, ports, building materials, chemical industry, etc.
Features:
1.The electric control box of hot splicing press is made of industrial grade aluminum alloy,small volume and light weight. Three-phase source of power supply.
2.Water press system can supply stable press.
3.Fast heating, steady heating temperature.
4.Equipped with auto electric control,easy to operate.
5. Degree of the heating platen: 22°/17°/ 20° (rectangle and other degree is optional)
6.High pressure water pump, adopted three cylinder plunger pump driven by single-phase machine,with the characteristics of compact structure, small volume, reliable, maintenance friendly.
7.Sturdy heating plate with hydraulic pressure system ensures temperature unifor-
mity, high pressure can reach Max.2.0 MPa ;Heating plate including air or water cooling.
8.Time of heat preservation for vulcanizing could be adjusted according to thickness of the rubber belts;
9.Splicing length of rubber conveyor belt for vulcanizing jointing could be connected together by single or several pieces if necessary;
10.Rubber conveyor belt as well as tension in kilogram required for vulcanizing jointing when ordering products.
11.Users could order spare electric pumps additionally according to requirements.
Model for Choice( or Just me your belt size, belt type)
12.Customization/OEM:Different heating platen size and combination
Technical Specification:
1. Vulcanization pressure: 1.0-2.0Mpa or customized;
2. Vulcanization temperature: 145 °C;
3. Surface temperature difference of vulcanized plate: ± 3 °C;
4. Heating-up time (145 °C): ≤30 mins;
5. Power supply voltage: 220V to 1140V; 50/60 Hz; 3Ph;
6. Output power of Electronic Control Box: 36 KW;
7. Temperature adjustment range: 0-200 °C;
8. Timing adjustment range: 0-99 min;
9. After the pressurization of 0.8 MPa, the gap between upper and lower heating plate is not more than 0.4 mm.
ZLJ conveyor belt vulcanizing machines can be used by one or multiple combinations according to the joint length of the belt.The main configuration of a single vulcanizing machine is as following:

Name	Amount
The whole machine	1 set
Ratchet wrench	2 piece
steel pad	1 set
Clamping device	1 set
Electric control box	1 set
Power cable	1 root
Control cable	2 root
Thermal resistance	2 pieces
QL electric water pump	1 set
SD Hand pressure pump (Optional)	1 set
Pressure pipe	2 root
Water cooling system (Optional)	1 set

Packing way:
· 1) wrapped with stretch film, avoid rubbing the paint off thesurface
·2)wooden packaging can be customized
· 3) key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.

Term of payment: T/T (30% deposit, 70% balance of B/L) ; L/C

Model	Belt width(mm)	Power(kw)	Dimensions	Weight(kg)
			(L*W*H mm)
SVP-650*830	650	9.5	1400*930*800	550
SVP-650*1000		10.8	1400*1100*800	620
SVP-800*830	800	11.2	1550*930*1000	580
SVP-800*1000		13.5	1550*1100*1000	680
SVP-1000*830	1000	14.1	1750*930*1000	650
SVP-1000*1000		15.7	1750*1100*1000	750
SVP-1200*830	1200	16.5	1950*930*1000	750
SVP-1200*1000		17.2	1950*1100*1000	860
SVP-1400*830	1400	18.6	2150*930*1000	900
SVP-1400*1000		20.7	2150*1100*1000	1050
SVP-1600*830	1600	21.5	2350*930*1000	1100
SVP-1600*1000		22.3	2350*1100*1000	1300
SVP-1800*830	1800	23.3	2550*930*1000	1200
SVP-1800*1000		25.6	2550*1100*1000	1420
SVP-2000*830	2000	27.2	2750*930*1000	1970
SVP-2000*1000		30	2750*1100*1000	2300
SVP-2200*830	2200	29.2	2950*930*1100	2100
SVP-2200*1000		34.1	2950*1100*1100	2500

FAQ 1. Q: Are you a manufacturer or trade company?
A: We are the manufacturer. We have our own plant,worker and techniques research developing department.
2 .Q: Where is your factory located? How can I visit there?
A: Our factory address is located in the beautiful Qingdao West Coast Economic Zone Nearest airport is Qingdao liuting international airport kindly send plane information in advance, so that we can pick you up at the airport, and book hotels as you require.
3. Q: What are your hot sale machine?
A: The main products are conveyor belt vulcanizing joint machine, mine explosion-proof conveyor belt vulcanizing machine, conveyor belt repair machine, conveyor belt peeling machine and other corollary equipment.
4. Q: How does your factory do regarding quality control?
A: Quality is priority and we have our own quality control department. We win make a strick inspect in before the machines leave the factory.
5 .Q: Are the technical parameter is fixed?
A: Basically, each model corresponding to the related machine. But we can design different type machine according to the client's requirement.
