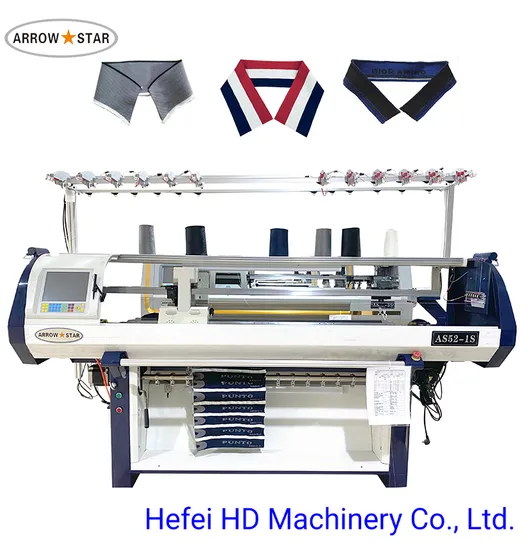

Fully Computerized Flat Collar Cuff Making Machine Sale
| US$4,500.00-6,500.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
AS80-(1+1)S
Knitting Machine Cut
E14
Knitting Product Type
Sweater
Knitting Style
Flat
Knitting Method
Double
Needle Style
Latch Needle
Needle Bar Style
Flatbed Knitting Machine
Computerized
Computerized
Certification
CE, ISO9001: 2000
Condition
New
After-sales Service
on Line /Door-to-Door Service
Transport Package
Wodden Case Packing
Specification
2450*750*1750mm
Trademark
Arrow Star
Origin
China
HS Code
8447120000
Production Capacity
2000sets/Month
Product Description
Product Description
Double Head Fully Jacquard 1+1 System Flat Knitting Machine For Collar
can make high definition collar, sweater, carpet, muslim cap, beanie, hat, scarf, blanket, baby clothes, cardigan, Jerseys, school uniform, gloves, rib, cuff, pocket, trousers and shawl. Besides Double Head Fully Jacquard 1+1 System Flat Knitting Machine For Collar, we can also supply double system sweater flat
knitting machine, three system sweater flat knitting machine, single system sweater flat knitting machine, single system with
double carriage collar & cuff knitting machine 80inch 2+2 and three system shoes upper knitting machine etc.
Specification:
| Gauge | 12G,14G,16G |
| Knitting width | 80inch, 100inch, 120inch optioned |
| Knitting function | Knitting miss, turk, transfer, pointel, intarsia, jacquard, apparent or hide shaping and other regular or irregular patterns |
| Knitting system | Double carriage with two system |
| Knitting speed | Max 1.6m/s |
| Stitch density | Controlled by stepping motor, 32 section stitch selectable adjustable scope supported by subdivision technology. 0-650, the stitch of the knitwear can be accurately controlled. |
| Dynamic stitch | Various density changes and controls can be carried out in the same line. |
| Racking | Controlled by sevro-motor racking within 2 inches and with fine adjusting function. |
| Takedown roller | Programmed instruction controlled by stepping motor, 32levels selection adjustable range:0-100. |
| Transfer | Simultaneous transfer, front or back, independent of carriage direction. Split stitch possible without exchanging yarn carriers. |
| Sinker system | controlled by stepping motor, adjustable to different knitwear, up to be various results of shaping and patterns. |
| Needle selection | Advanced encoder reading pin. 8-stage selecting needle setup composed of special electromagnet is regarded as efficient full width jacquard needle selector. |
| Yam feed roller | Prevention coiling device yam feed roller, Electroplating ceramic roller, effective anti static. |
| Yam ariers | The new design of the color change device(lever principle), to eliminate the yarn feeder does not take. 2 sets of yarns are equipped with rollers to reduce yam breakage. |
| Top tension | 24units. One-touch easy threading. Large knots cause machine stop. Small knots cause 0-9 courses at specified knot detection speed, then automatically resume at set speed. |
| Stop motion | Yarn break, large knot, fabric pileup, shock detection, piece count, Over-torque, program error, etc. |
| Drive system | Belt drive. AC servo motor. No lubrication necessary. |
| Protection system | Automatically alarm when yarn-breaking knots floating yarn rewind end of knitting, fail of racking needle breakage error programming occur also set up the safety auto-lock protect device. |
| Needle detector | Knitting area alarm, non alarm outside weave area. Automatic reset |
