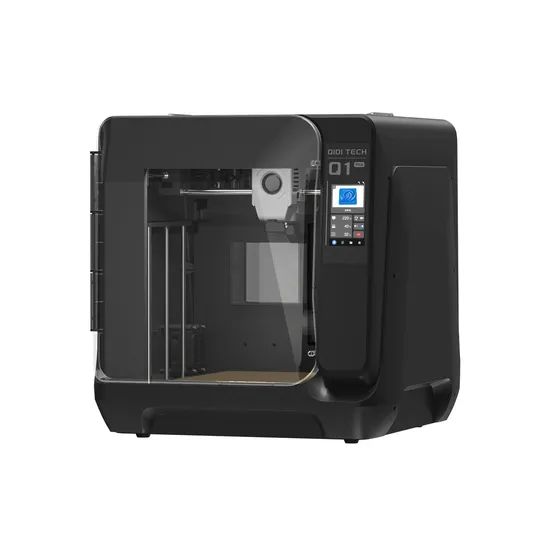

Qidi Q1 PRO 3D Printer, 600mm/S High-Speed Fully Auto Leveling 3D Printers with Camera

Product Description

QIDI Q1 Pro 3D Printer Product Parameters

Print size (W×D×H)	245×245×240 mm
Auxiliary model cooling fan	Yes
Printer size	477×467×489 mm
Chamber fan	Yes
Package size	545×535×595 mm
Chamber Temperature	60°C Separate Chamber Heating
Gross weight	20.3 kg
Recommended consumables	PLA, ABS, ASA, PETG
Net weight	17 kg
Compatible Consumables	TPU, PA, PC, Glass/Carbon Fiber Composite Consumables
Printer Configuration	CoreXY
Consumables dry box	Option
X/Y-axis	10 mm hollow linear steel shaft with automatic belt tensioning.
Wrap detection	Yes
Z-axis	Independent twin-screw motor
Consumable break detection	Yes
Printhead temperature	≤ 350°C
Automatic leveling	Fully automatic
Extruder	Direct extruder, hardened steel gears
Input shaping	Yes
Hot end	Ceramic plate heating hot end
Power failure refill	Yes
Nozzle	Bimetal nozzle
Voltage	100-240 VAC, 50/60Hz
Nozzle diameter	0.4 mm (optional 0.2/0.6/0.8 mm)
Rated power	350W
Consumable diameter	1.75 mm
Display	4.3-inch 272×480 touch screen
Print platform	Aluminum plate heated hot bed
Storage	32G EMMC and USB2.0 flash memory
Build plate	Double-sided PEI textured plate
Camera	Camera (up to 1080P) with time-lapse support
Hotbed Temperature	≤ 120°C
Wireless Wifi	150M 2.4G
Maximum nozzle travel speed	600 mm/s
Slicing software	QIDI Slicer and other third-party slicing software such as Orca, PrusaSlicer, etc.
Acceleration	≤ 20000 mm/sec².
Supported model file formats	STL, OBJ, 3MF, STEP, STP
Operating systems	Windows, MacOS, Linux

Detailed Photos
Rugged design for greater reliability
Features an all-metal frame reinforced by a metal base for increased stability.
Stability and accuracy at high speeds
Lightweight CoreXY construction supports ultra-fast acceleration.
SpreadCycle technology provides less vibration.
Intelligent Silence TMC2240 drives minimize noise for safe operation while reducing power consumption and heat generation.
Optimized Temperature Control
Optimized temperature control through active chamber heating reduces warpage, improves layer bonding and overall print quality at temperatures up to 60 °C. The TMC2240 driver is designed to provide optimal temperature control, with a maximum temperature of 60 °C.
Particularly suitable for printing on ABS, PA, PC and other materials.
Innovative tri-metal hot end
Equipped with a newly developed tri-metal hot end and anti-clogging bimetal nozzles.
Maximum print temperature of 350°C enables printing of parts with improved mechanical properties, including materials such as PAHT-CF, PET-CF, PA12-CF, ABS-GF25, PC/ABS-FR.
Automatic alignment for quick start
Automatically aligns the table using two sensors to ensure a perfect first layer for every print.
Automatically calculates Z-axis offsets, eliminating the need to align sheets.
